FRANÇAIS
A showcase of ÉTS researchers’ publications and other contributions
SEARCH

Corrosion fatigue and electrochemical behavior of superelastic Ti-Nb-Ta alloy for medical implants under cyclic load conditions

Downloads

Downloads per month over past year

Zhukova, Y. S., Pustov, Y. A., Konopatsky, A. S., Dubinskiy, S. M., Filonov, M. R. et Brailovski, V.. 2015. « Corrosion fatigue and electrochemical behavior of superelastic Ti-Nb-Ta alloy for medical implants under cyclic load conditions ». [Conference paper]. Materials Today: Proceedings, vol. 2, nº Supp. 3. S991-S994.
Compte des citations dans Scopus : 5.

[img]
Preview
PDF
Corrosion fatigue and electrochemical behavior of superelastic Ti-Nb-Ta alloy for medical implants under cyclic load conditions.pdf

Download (395kB) | Preview

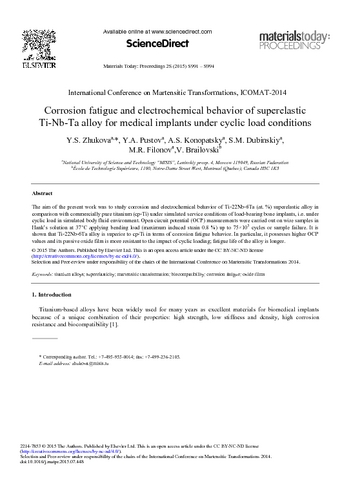

Abstract

The aim of the present work was to study corrosion and electrochemical behavior of Ti-22Nb-6Ta (at. %) superelastic alloy in comparison with commercially pure titanium (cp-Ti) under simulated service conditions of load-bearing bone implants, i.e. under cyclic load in simulated body fluid environment. Open circuit potential (OCP) measurements were carried out on wire samples in Hank’s solution at 37°C applying bending load (maximum induced strain 0.8 %) up to 75×103 cycles or sample failure. It is shown that Ti-22Nb-6Ta alloy is superior to cp-Ti in terms of corrosion fatigue behavior. In particular, it possesses higher OCP values and its passive oxide film is more resistant to the impact of cyclic loading; fatigue life of the alloy is longer.

Item Type: Peer reviewed article published in a journal
Additional Information: Thématique : International Conference on Martensitic Transformations, ICOMAT-2014
Professor:
Professor
Brailovski, Vladimir
Affiliation: Génie mécanique
Date Deposited: 04 Feb 2016 21:09
Last Modified: 17 May 2016 14:06
URI: http://espace2.etsmtl.ca/id/eprint/12277

Actions (login required)

View Item View Item
