An impedance based method for distribution system monitoring

Hashem, Mortazavi et Mehrjerdi, Hasan et Saad, Maarouf et Lefebvre, Serge et Asber, Dalal et Lenoir, Laurent. 2016. « An impedance based method for distribution system monitoring ». IEEE Transactions on Smart Grid.
(Sous presse)

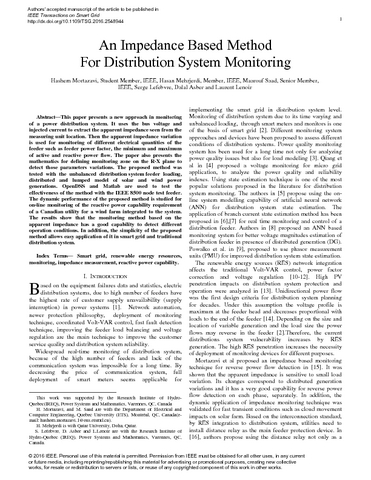

[img]
Prévisualisation
PDF
Saad M. 2016 12555 An impedance based method.pdf - Version acceptée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (1MB) | Prévisualisation

Résumé

This paper presents a new approach in monitoring of a power distribution system. It uses the bus voltage and injected current to extract the apparent impedance seen from the measuring unit location. Then the apparent impedance variation is used for the monitoring of different electrical quantities of the feeder such as feeder power factor, and the minimum and maximum of active and reactive power flow. This paper also presents the mathematics for defining the monitoring zone on the R-X plane to detect those parameters variations. The proposed method was tested with the unbalanced distribution system feeder loading, distributed and lumped model of solar, and wind power generations. OpenDSS and MATLAB are used to test the effectiveness of the method with the IEEE 8500 node test feeder. The dynamic performance of the proposed method is studied for online monitoring of the reactive power capability requirement of a Canadian utility for a wind farm integrated to the system. The results show that the monitoring method based on the apparent impedance has a good capability to detect different operation conditions. In addition, the simplicity of the proposed method allows easy application of it in smart grid and traditional distribution system.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Saad, Maarouf
Affiliation: Génie électrique
Date de dépôt: 11 avr. 2016 13:45
Dernière modification: 03 mars 2017 15:52
URI: http://espace2.etsmtl.ca/id/eprint/12555
