A 1-V 690 μW 8-bit 200 MS/s flash-SAR ADC with pipelined operation of flash and SAR ADCs in 0.13μm CMOS

Eslami, Monireh et Taherzadeh-Sani, Mohammad et Nabki, Frederic. 2015. « A 1-V 690 μW 8-bit 200 MS/s flash-SAR ADC with pipelined operation of flash and SAR ADCs in 0.13μm CMOS ». In 2015 IEEE International Symposium on Circuits and Systems (ISCAS) (Lisbon, Portugal, May 24-27, 2015), p. 289-292. Piscataway, NJ, USA : IEEE.

[img]

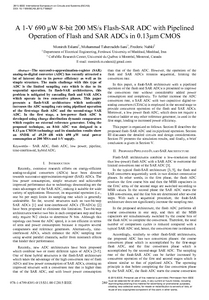

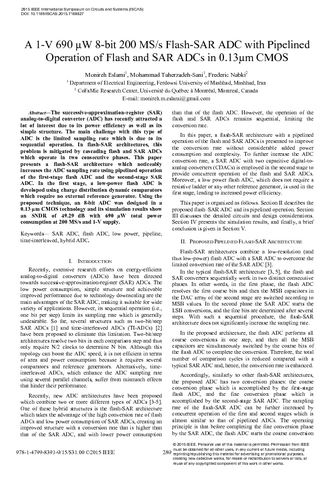

Prévisualisation
PDF
Nabki F. 2015 13222 A 1-V 690 uW 8-bit.pdf - Version acceptée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (618kB) | Prévisualisation

Résumé

The successive-approximation-register (SAR) analog-to-digital converter (ADC) has recently attracted a lot of interest due to its power efficiency as well as its simple structure. The main challenge with this type of ADC is the limited sampling rate which is due to its sequential operation. In flash-SAR architectures, this problem is mitigated by cascading flash and SAR ADCs which operate in two consecutive phases. This paper presents a flash-SAR architecture which noticeably increases the ADC sampling rate using pipelined operation of the first-stage flash ADC and the second-stage SAR ADC. In the first stage, a low-power flash ADC is developed using charge distribution dynamic comparators which require no external reference generator. Using the proposed technique, an 8-bit ADC was designed in a 0.13 μm CMOS technology and its simulation results show an SNDR of 49.29 dB with 690 μW total power consumption at 200 MS/s and 1-V supply.

Type de document: Compte rendu de conférence
Professeur:
Professeur
Nabki, Frédéric
Affiliation: Autres
Date de dépôt: 13 juill. 2016 18:06
Dernière modification: 15 déc. 2016 22:07
URI: http://espace2.etsmtl.ca/id/eprint/13222
