Implementation strategies for a universal acquisition and tracking channel applied to real GNSS signals

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Fortin, Marc-Antoine et Landry, René. 2016. « Implementation strategies for a universal acquisition and tracking channel applied to real GNSS signals ». Sensors, vol. 16, nº 5.
Compte des citations dans Scopus : 5.

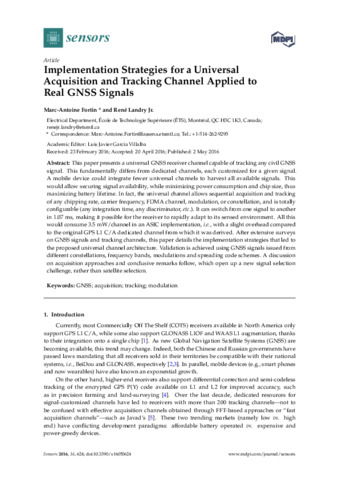

[thumbnail of Landry R 2016 13288.pdf]
Prévisualisation
PDF
Landry R 2016 13288.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY.

Télécharger (3MB) | Prévisualisation

Résumé

This paper presents a universal GNSS receiver channel capable of tracking any civil GNSS signal. This fundamentally differs from dedicated channels, each customized for a given signal. A mobile device could integrate fewer universal channels to harvest all available signals. This would allow securing signal availability, while minimizing power consumption and chip size, thus maximizing battery lifetime. In fact, the universal channel allows sequential acquisition and tracking of any chipping rate, carrier frequency, FDMA channel, modulation, or constellation, and is totally configurable (any integration time, any discriminator, etc.). It can switch from one signal to another in 1.07 ms, making it possible for the receiver to rapidly adapt to its sensed environment. All this would consume 3.5 mW/channel in an ASIC implementation, i.e., with a slight overhead compared to the original GPS L1 C/A dedicated channel from which it was derived. After extensive surveys on GNSS signals and tracking channels, this paper details the implementation strategies that led to the proposed universal channel architecture. Validation is achieved using GNSS signals issued from different constellations, frequency bands, modulations and spreading code schemes. A discussion on acquisition approaches and conclusive remarks follow, which open up a new signal selection challenge, rather than satellite selection.

Type de document: Article publié dans une revue, révisé par les pairs
Informations complémentaires: Identifiant de l'article: 624
Professeur:
Professeur
Landry, René Jr
Affiliation: Génie électrique
Date de dépôt: 14 juill. 2016 20:47
Dernière modification: 16 oct. 2020 18:44
URI: https://espace2.etsmtl.ca/id/eprint/13288
