Sliding mode fixed frequency current controller design for grid-connected NPC inverter

Sebaaly, Fadia et Vahedi, Hani et Kanaan, Hadi Y. et Moubayed, Nazih et Al-Haddad, Kamal. 2016. « Sliding mode fixed frequency current controller design for grid-connected NPC inverter ». IEEE Journal of Emerging and Selected Topics in Power Electronics, vol. 4, nº 4. p. 1397-1405.

[img]
Prévisualisation
PDF

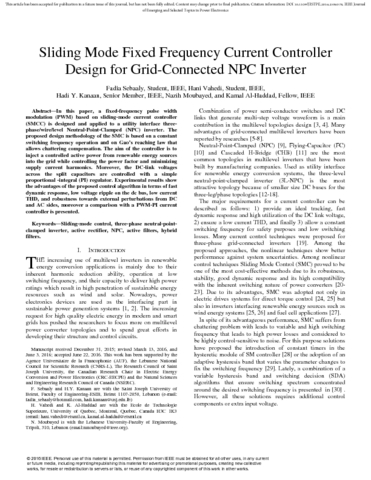

Al-Haddad K. 2016 14067 Sliding Mode Fixed Frequency.pdf - Version acceptée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (1MB) | Prévisualisation

Résumé

In this paper, a fixed-frequency pulsewidth modulation (PWM) based on sliding-mode current controller is designed and applied to a utility interface three-phase/wire/level neutral-point-clamped inverter. The proposed design methodology of the sliding-mode control is based on a constant switching frequency operation and on Gao's reaching law that allows chattering compensation. The aim of the controller is to inject a controlled active power from renewable energy sources into the grid while controlling the power factor and minimizing supply current harmonics. Moreover, the dc-link voltages across the split capacitors are controlled with a simple proportional-integral (PI) regulator. Experimental results show the advantages of the proposed control algorithm in terms of fast dynamic response, low voltage ripple on the dc bus, low current Total Harmonic Distortion, and robustness toward external perturbations from the dc and ac sides; moreover, a comparison with a PWM-PI current controller is presented.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Al Haddad, Kamal
Affiliation: Génie électrique
Date de dépôt: 02 déc. 2016 19:06
Dernière modification: 06 avr. 2017 21:00
URI: http://espace2.etsmtl.ca/id/eprint/14067
