Influence of local mechanical properties of high strength steel from large size forged ingot on ultrasonic wave velocities

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Dupont-Marillia, Frederic, Jahazi, Mohammad, Lafreniere, Serge et Bélanger, Pierre. 2017. « Influence of local mechanical properties of high strength steel from large size forged ingot on ultrasonic wave velocities ». In 43rd Annual Review of Progress in Quantitative Nondestructive Evaluation (Atlanta, GA, USA, July 17-22, 2016) Coll. « AIP Conference Proceedings », vol. 1806. USA : American Institute of Physics.
Compte des citations dans Scopus : 3.

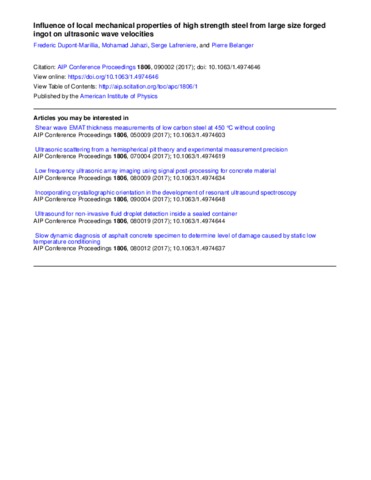

[thumbnail of Jahazi M 2017 14758 Influence of local mechanical properties.pdf]
Prévisualisation
PDF
Jahazi M 2017 14758 Influence of local mechanical properties.pdf - Version publiée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (1MB) | Prévisualisation

Résumé

In the metallurgical industry, ultrasonic inspection is routinely used for the detection of defects. For the non-destructive inspection of small high strength steel parts, the material can be considered isotropic. However, when the size of the parts under inspection is large, the isotropic material hypothesis does not necessarily hold. The aim of this study is to investigate the effect of the variation in mechanical properties such as grain size, Young’s modulus, Poissons ratio, chemical composition on longitudinal and transversal ultrasonic wave velocities. A 2 cm thick slice cut from a 40-ton bainitic steel ingot that was forged and heat treated was divided into 875 parallelepiped samples of 2x4x7 cm3. A metallurgical study has been performed to identify the phase and measure the grain size. Ultrasonic velocity measurements at 2.25 MHz for longitudinal and transversal waves were performed. The original location of the parallelepiped samples in the large forged ingot, and the measured velocities were used to produce an ultrasonic velocity map. Using a local isotropy assumption as well as the local density of the parallelepiped samples calculated from the chemical composition of the ingot provided by a previously published study, Youngs modulus and Poissons ratio were calculated from the longitudinal and transversal wave velocities. Micro-tensile test was used to validate Youngs modulus obtained by the ultrasonic wave velocity and an excellent agreement was observed.

Type de document: Compte rendu de conférence
ISBN: 0094-243X
Professeur:
Professeur
Jahazi, Mohammad
Bélanger, Pierre
Affiliation: Génie mécanique, Génie mécanique
Date de dépôt: 06 mars 2017 21:29
Dernière modification: 13 avr. 2023 16:08
URI: https://espace2.etsmtl.ca/id/eprint/14758
