ENGLISH
La vitrine de diffusion des publications et contributions des chercheurs de l'ÉTS
RECHERCHER

Structure, texture and phases in 3D printed IN718 alloy subjected to homogenization and HIP treatments

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Mostafa, Ahmad et Rubio, Ignacio Picazo et Brailovski, Vladimir et Jahazi, Mohammad et Medraj, Mamoun. 2017. « Structure, texture and phases in 3D printed IN718 alloy subjected to homogenization and HIP treatments ». Metals, vol. 7, nº 6.
Compte des citations dans Scopus : 11.

[img]
Prévisualisation
PDF
Jahazi M 2017 15497 Structure texture and phases in 3D.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY.

Télécharger (11MB) | Prévisualisation

Résumé

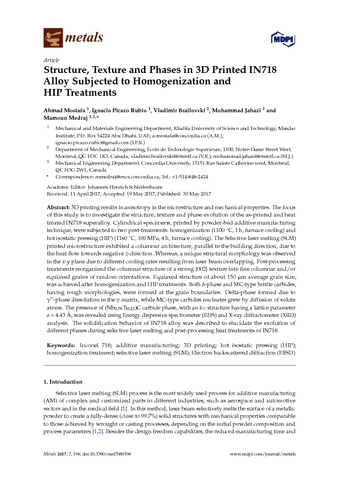

3D printing results in anisotropy in the microstructure and mechanical properties. The focus of this study is to investigate the structure, texture and phase evolution of the as-printed and heat treated IN718 superalloy. Cylindrical specimens, printed by powder-bed additive manufacturing technique, were subjected to two post-treatments: homogenization (1100 °C, 1 h, furnace cooling) and hot isostatic pressing (HIP) (1160 °C, 100 MPa, 4 h, furnace cooling). The Selective laser melting (SLM) printed microstructure exhibited a columnar architecture, parallel to the building direction, due to the heat flow towards negative z-direction. Whereas, a unique structural morphology was observed in the x-y plane due to different cooling rates resulting from laser beam overlapping. Post-processing treatments reorganized the columnar structure of a strong {002} texture into fine columnar and/or equiaxed grains of random orientations. Equiaxed structure of about 150 µm average grain size, was achieved after homogenization and HIP treatments. Both δ-phase and MC-type brittle carbides, having rough morphologies, were formed at the grain boundaries. Delta-phase formed due to γ″-phase dissolution in the γ matrix, while MC-type carbides nucleates grew by diffusion of solute atoms. The presence of (Nb0.78Ti0.22)C carbide phase, with an fcc structure having a lattice parameter a = 4.43 Å, was revealed using Energy dispersive spectrometer (EDS) and X-ray diffractometer (XRD) analysis. The solidification behavior of IN718 alloy was described to elucidate the evolution of different phases during selective laser melting and post-processing heat treatments of IN718.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Brailovski, Vladimir
Jahazi, Mohammad
Affiliation: Génie mécanique
Date de dépôt: 26 juin 2017 18:05
Dernière modification: 04 déc. 2017 18:04
URI: http://espace2.etsmtl.ca/id/eprint/15497

Actions (Authentification requise)

Dernière vérification avant le dépôt Dernière vérification avant le dépôt
