ENGLISH
La vitrine de diffusion des publications et contributions des chercheurs de l'ÉTS
RECHERCHER

Twin-assisted precipitation during hot compression of an Mg-Gd-Zn-Zr magnesium alloy

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Saadati, Mohammad et Azari Khosroshahi, Rasoul et Ebrahimi, Golamreza et Jahazi, Mohammad. 2017. « Twin-assisted precipitation during hot compression of an Mg-Gd-Zn-Zr magnesium alloy ». Materials Science and Engineering A, vol. 706. p. 142-152.
Compte des citations dans Scopus : 1.

[img] PDF
Jahazi M 2017 15838 Twin-assisted precipitation during hot compression.pdf - Version acceptée
Accès restreint à : Administrateur seulement jusqu'au 1 Septembre 2019.
Licence d'utilisation : Creative Commons CC BY-NC-ND.

Télécharger (2MB) | Demande de copie

Résumé

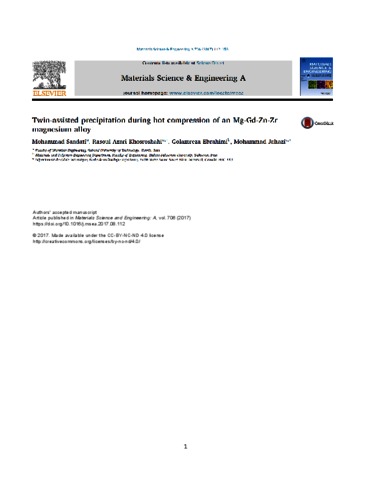

Dynamic precipitation in an Mg-Gd-Zn-Zr alloy during hot compression at 350℃ and 450℃ and at strain rates of 0.001-0.1s-1 is investigated. The deformation conditions were designed such as to promote twinning or slip of dislocations. The results indicated that both twinned and non-twinned grains were present at 350℃, with the extent being a function of the applied strain rate. The formation and propagation of {101̅2}〈1̅011〉 primary tensile twins within the twinned grains was identified as being at root of the twin-assisted precipitation phenomenon. The precipitates had spherical-morphology in the twinned grains whereas parallel arrays of rod-shaped precipitates formed in the non-twinned grains due to dynamic precipitation on the slip bands and the stacking faults. Twin-assisted precipitates were suppressed by increases in the strain rate at 350℃ because of the shorter time required for solute element diffusion towards the nucleated precipitates at that temperature. Increasing the deformation temperature to 450℃ changed the dominant deformation mechanism from twinning to slip of dislocations, resulting in the formation of rod-shaped precipitates similar to those observed in non-twinned grains at 350℃. An EBSD analysis was used to study the dominant deformation mechanism as a function of the Schmid factor, and the twinning deformation mechanism was found to be predominant in the grains having a lower Schmid factor.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Jahazi, Mohammad
Affiliation: Génie mécanique
Date de dépôt: 03 nov. 2017 20:09
Dernière modification: 01 août 2018 18:30
URI: http://espace2.etsmtl.ca/id/eprint/15838

Actions (Authentification requise)

Dernière vérification avant le dépôt Dernière vérification avant le dépôt
