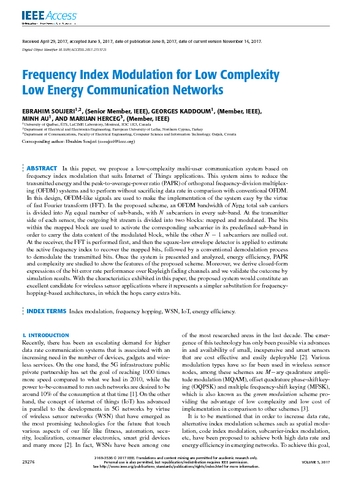

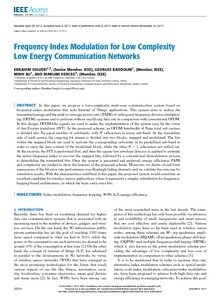

Frequency index modulation for low complexity low energy communication networks

Soujeri, Ebrahim et Kaddoum, Georges et Au, Minh et Herceg, Marijan. 2017. « Frequency index modulation for low complexity low energy communication networks ». IEEE Access, vol. 5. p. 23276-23287.

[img]
Prévisualisation
PDF
Kaddoum G 2017 15998 Frequency index modulation for low complexity.pdf - Version publiée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (4MB) | Prévisualisation

Résumé

In this paper, we propose a low-complexity multi-user communication system based on frequency index modulation that suits Internet of Things applications. This system aims to reduce the transmitted energy and the peak-to-average-power ratio (PAPR) of orthogonal frequency-division multiplexing (OFDM) systems and to perform without sacrificing data rate in comparison with conventional OFDM. In this design, OFDM-like signals are used to make the implementation of the system easy by the virtue of fast Fourier transform (FFT). In the proposed scheme, an OFDM bandwidth of NFIM total sub carriers is divided into NB equal number of sub-bands, with N subcarriers in every sub-band. At the transmitter side of each sensor, the outgoing bit stream is divided into two blocks: mapped and modulated. The bits within the mapped block are used to activate the corresponding subcarrier in its predefined sub-band in order to carry the data content of the modulated block, while the other N−1 subcarriers are nulled out. At the receiver, the FFT is performed first, and then the square-law envelope detector is applied to estimate the active frequency index to recover the mapped bits, followed by a conventional demodulation process to demodulate the transmitted bits. Once the system is presented and analyzed, energy efficiency, PAPR and complexity are studied to show the features of the proposed scheme. Moreover, we derive closed-form expressions of the bit error rate performance over Rayleigh fading channels and we validate the outcome by simulation results. With the characteristics exhibited in this paper, the proposed system would constitute an excellent candidate for wireless sensor applications where it represents a simpler substitution for frequency-hopping-based architectures, in which the hops carry extra bits.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Kaddoum, Georges
Affiliation: Génie électrique
Date de dépôt: 28 nov. 2017 16:14
Dernière modification: 29 nov. 2017 15:37
URI: http://espace2.etsmtl.ca/id/eprint/15998
