Workpiece subsurface temperature study during aluminum skin milling in slotting and ramping

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Rimpault, Xavier, Il, Alexandre, Chatelain, Jean-François, Lalonde, Jean-François et Balazinski, Marek. 2018. « Workpiece subsurface temperature study during aluminum skin milling in slotting and ramping ». In 8th CIRP Conference on High Performance Cutting (HPC 2018) (Budapest, Hungary, June 25-27, 2018) Coll. « Procedia CIRP », vol. 77. pp. 417-420. Elsevier.
Compte des citations dans Scopus : 1.

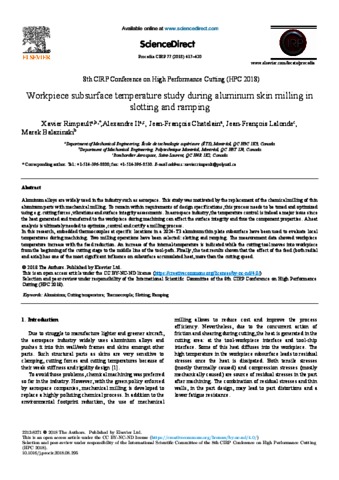

[thumbnail of Chatelain J 2018 17765.pdf]
Prévisualisation
PDF
Chatelain J 2018 17765.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY-NC-ND.

Télécharger (753kB) | Prévisualisation

Résumé

Aluminum alloys are widely used in the industry such as aerospace. This study was motivated by the replacement of the chemical milling of thin aluminum parts with mechanical milling. To remain within requirements of design specifications, this process needs to be tuned and optimized using e.g. cutting forces, vibrations and surface integrity assessments. In aerospace industry, the temperature control is indeed a major issue since the heat generated and transferred to the workpiece during machining can affect the surface integrity and thus the component properties. A heat analysis is ultimately needed to optimize, control and certify a milling process. In this research, embedded thermocouples at specific locations in a 2024-T3 aluminum thin plate subsurface have been used to evaluate local temperatures during machining. Two milling operations have been selected: slotting and ramping. The measurement data showed workpiece temperature increase with the feed reduction. An increase of the internal-temperature is indicated while the cutting tool moves into workpiece from the beginning of the cutting stage to the middle line of the tool-path. Finally, the test results shown that the effect of the feed (both radial and axial) has one of the most significant influence on subsurface accumulated heat, more than the cutting speed.

Type de document: Compte rendu de conférence
Professeur:
Professeur
Chatelain, Jean-François
Affiliation: Génie mécanique
Date de dépôt: 20 déc. 2018 20:48
Dernière modification: 14 mai 2019 17:51
URI: https://espace2.etsmtl.ca/id/eprint/17765
