Experimental and numerical analysis of the fields of the frozen stresses in an epoxy sphere using the stress-freezing method and mechanical slicing

Downloads

Downloads per month over past year

Touahir, Kamel, Bilek, Ali, Bocher, Philippe et Beldi, Mustapha. 2019. « Experimental and numerical analysis of the fields of the frozen stresses in an epoxy sphere using the stress-freezing method and mechanical slicing ». Journal of Materials and Engineering Structures, vol. 6, nº 2.

[img]
Preview
PDF

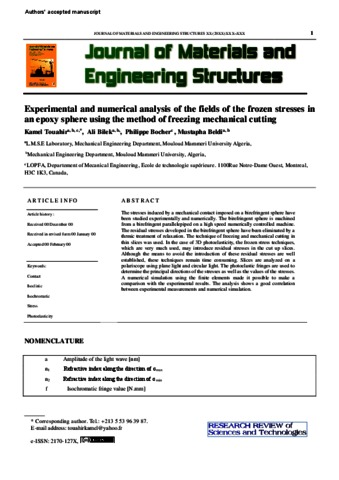

Bocher P 2019 18719.pdf - Accepted Version
Use licence: Creative Commons CC BY-SA.

Download (1MB) | Preview
[img]
Preview
PDF

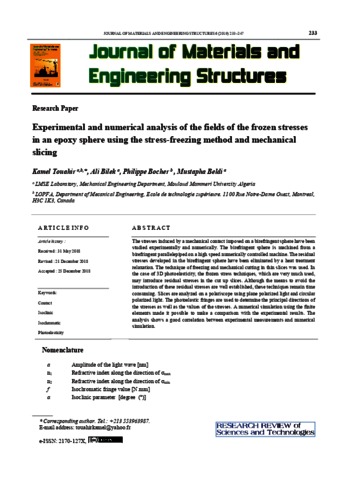

Bocher P 2019 18719-2.pdf - Published Version
Use licence: Creative Commons CC BY-SA.

Download (3MB) | Preview

Abstract

The stresses induced by a mechanical contact imposed on a birefringent sphere have been studied experimentally and numerically. The birefringent sphere is machined from a birefringent parallelepiped on a high speed numerically controlled machine. The residual stresses developed in the birefringent sphere have been eliminated by a heat treatment relaxation. The technique of freezing and mechanical cutting in thin slices was used. In the case of 3D photoelasticity, the frozen stress techniques, which are very much used, may introduce residual stresses in the cut up slices. Although the means to avoid the introduction of these residual stresses are well established, these techniques remain time consuming. Slices are analyzed on a polariscope using plane polarized light and circular polarized light. The photoelastic fringes are used to determine the principal directions of the stresses as well as the values of the stresses. A numerical simulation using the finite elements made it possible to make a comparison with the experimental results. The analysis shows a good correlation between experimental measurements and numerical simulation.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Bocher, Philippe
Affiliation: Génie mécanique
Date Deposited: 02 May 2019 17:55
Last Modified: 06 Aug 2019 15:02
URI: https://espace2.etsmtl.ca/id/eprint/18719
