Optimization of a spherical microphone array geometry for localizing acoustic sources using the generalized cross-correlation technique

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Padois, Thomas, Doutres, Olivier, Sgard, Franck et Berry, Alain. 2019. « Optimization of a spherical microphone array geometry for localizing acoustic sources using the generalized cross-correlation technique ». Mechanical Systems and Signal Processing, vol. 132. pp. 546-559.
Compte des citations dans Scopus : 13.

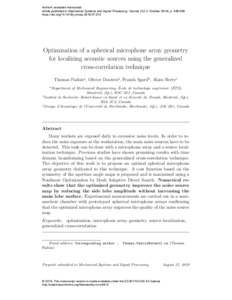

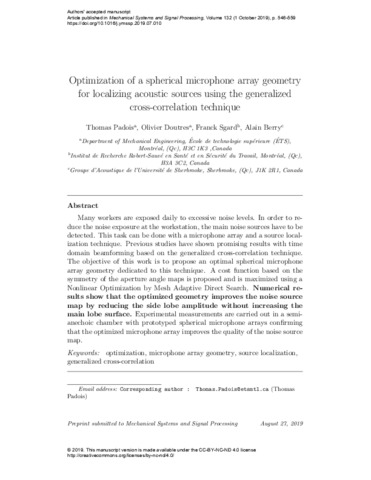

[thumbnail of Doutres O 2019 19270.pdf]
Prévisualisation
PDF
Doutres O 2019 19270.pdf - Version acceptée
Licence d'utilisation : Creative Commons CC BY-NC-ND.

Télécharger (10MB) | Prévisualisation

Résumé

Many workers are exposed daily to excessive noise levels. In order to reduce the noise exposure at the workstation, the main noise sources have to be detected. This task can be done with a microphone array and a source localization technique. Previous studies have shown promising results with time domain beamforming based on the generalized cross-correlation technique. The objective of this work is to propose an optimal spherical microphone array geometry dedicated to this technique. A cost function based on the symmetry of the aperture angle maps is proposed and is maximized using a Nonlinear Optimization by Mesh Adaptive Direct Search. Numerical results show that the optimized geometry improves the noise source map by reducing the side lobe amplitude without increasing the main lobe surface. Experimental measurements are carried out in a semi-anechoic chamber with prototyped spherical microphone arrays confirming that the optimized microphone array improves the quality of the noise source map.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Doutres, Olivier
Affiliation: Génie mécanique
Date de dépôt: 13 août 2019 19:25
Dernière modification: 27 août 2019 18:08
URI: https://espace2.etsmtl.ca/id/eprint/19270
