Influence of particle morphology and size distribution on the powder flowability and laser powder bed fusion manufacturability of Ti-6Al-4V alloy

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Brika, Salah Eddine, Letenneur, Morgan, Dion, Christopher Alex et Brailovski, Vladimir. 2020. « Influence of particle morphology and size distribution on the powder flowability and laser powder bed fusion manufacturability of Ti-6Al-4V alloy ». Additive Manufacturing, vol. 31.
Compte des citations dans Scopus : 203.

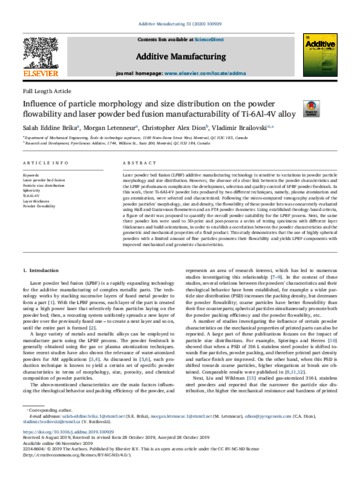

[thumbnail of Brailovski V 2020 19883.pdf]
Prévisualisation
PDF
Brailovski V 2020 19883.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY-NC-ND.

Télécharger (7MB) | Prévisualisation

Résumé

Laser powder bed fusion (LPBF) additive manufacturing technology is sensitive to variations in powder particle morphology and size distribution. However, the absence of a clear link between the powder characteristics and the LPBF performances complicates the development, selection and quality control of LPBF powder feedstock. In this work, three Ti-6Al-4 V powder lots produced by two different techniques, namely, plasma atomization and gas atomization, were selected and characterized. Following the micro-computed tomography analysis of the powder particles’ morphology, size and density, the flowability of these powder lots was concurrently evaluated using Hall and Gustavsson flowmeters and an FT4 powder rheometer. Using established rheology-based criteria, a figure of merit was proposed to quantify the overall powder suitability for the LPBF process. Next, the same three powder lots were used to 3D-print and post-process a series of testing specimens with different layer thicknesses and build orientations, in order to establish a correlation between the powder characteristics and the geometric and mechanical properties of a final product. This study demonstrates that the use of highly spherical powders with a limited amount of fine particles promotes their flowability and yields LPBF components with improved mechanical and geometric characteristics.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Brailovski, Vladimir
Affiliation: Génie mécanique
Date de dépôt: 10 déc. 2019 20:19
Dernière modification: 13 déc. 2019 15:51
URI: https://espace2.etsmtl.ca/id/eprint/19883
