Experimental estimation of the transmission loss contributions of a sound package placed in a double wall structure

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Doutres, Olivier et Atalla, Noureddine. 2011. « Experimental estimation of the transmission loss contributions of a sound package placed in a double wall structure ». Applied Acoustics, vol. 72, nº 6. pp. 372-379.
Compte des citations dans Scopus : 18.

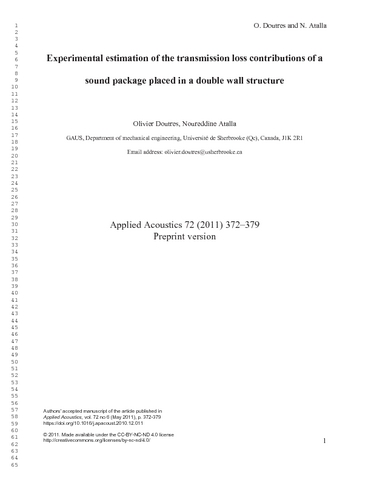

[thumbnail of Doutres O 2011 8778 Experimental Estimation Of The Transmission.pdf]
Prévisualisation
PDF
Doutres O 2011 8778 Experimental Estimation Of The Transmission.pdf - Version acceptée
Licence d'utilisation : Creative Commons CC BY-NC-ND.

Télécharger (1MB) | Prévisualisation

Résumé

The objective of this paper is to propose a practical impedance tube method to optimize the sound transmission loss of double wall structure by concentrating on the sound package placed inside the structure. In a previous work, the authors derived an expression that breakdown the transmission loss of a double wall structure containing a sound absorbing blanket separated from the panels by air layers in terms of three main contributions; (i) sound transmission loss of the panels, (ii) sound transmission loss of the blanket and (iii) sound absorption due to multiple reflections inside the cavity. The sound transmission loss contributions of the blanket can thus be estimated from three acoustic measurements using impedance tube techniques: two reflection coefficients at the front face and the rear face of the blanket placed in specific positions characteristic of its position inside the double wall structure and its sound transmission coefficient. The method is first validated in the case of a double wall structure filled with a 2 in. foam material. Next, it is applied to investigate (i) the effect of frame compression of a 2 in. fibre glass in an aeronautic-type double wall structure and (ii) the effect of double porosity with or without porous inclusions in a building-type double wall structure.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Doutres, Olivier
Affiliation: Autres
Date de dépôt: 28 oct. 2014 15:21
Dernière modification: 23 nov. 2017 19:50
URI: https://espace2.etsmtl.ca/id/eprint/8778
