Three-microphone two-cavity method for measuring sound transmission loss in a modified impedance tube

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Salissou, Yacoubou, Panneton, Raymond et Doutres, Olivier. 2011. « Three-microphone two-cavity method for measuring sound transmission loss in a modified impedance tube ». [Article de conférence]. Canadian Acoustics = Acoustique Canadienne, vol. 39, nº 3. pp. 16-17.
Compte des citations dans Scopus : 2.

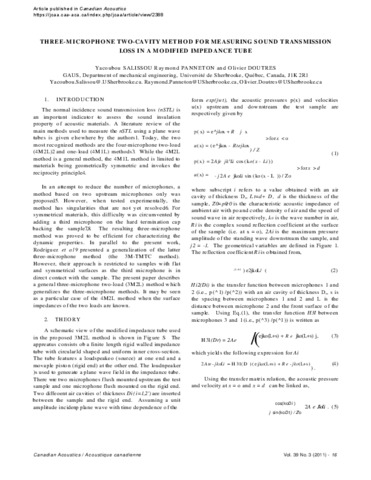

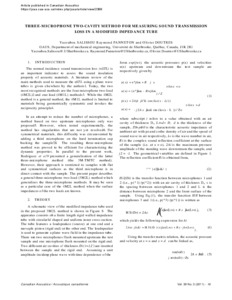

[thumbnail of Doutres O 2011 8817 Three-microphone two-cavity method.pdf]
Prévisualisation
PDF
Doutres O 2011 8817 Three-microphone two-cavity method.pdf - Version publiée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (214kB) | Prévisualisation

Résumé

The normal incidence sound transmission loss (nSTL) is an important indicator to assess the sound insulation property of acoustic materials. The apparatus consists of a finite length rigid walled impedance tube with circularly shaped and uniform inner cross-section. The tube features a loudspeaker at one end and a movable piston at the other end. The loudspeaker is used to generate a plane wave field in the impedance tube. There are two microphones flush mounted upstream the test sample and one microphone flush mounted on the rigid end. Next, a 20-mm thick step discontinuity seeing as a non-symmetrical sample is tested and compared to the standard 4M2L method and 3M-TMTC method. One can note that similar results are obtained between the 3M2L and 4M2L methods, however 4M2L is noisier compared to 3M2L.

Type de document: Article publié dans une revue, révisé par les pairs
Informations complémentaires: Acoustics Week in Canada 2011, annual conference of the Canadian Acoustical Association
Professeur:
Professeur
Doutres, Olivier
Affiliation: Autres
Date de dépôt: 29 oct. 2014 17:54
Dernière modification: 24 août 2017 19:09
URI: https://espace2.etsmtl.ca/id/eprint/8817
