A virtual fixture using a FE-based transformation model embedded into a constrained optimization for the dimensional inspection of nonrigid parts

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Abenhaim, Gad N., Desrochers, Alain, Tahan, S.-Antoine et Bigeon, Jean. 2015. « A virtual fixture using a FE-based transformation model embedded into a constrained optimization for the dimensional inspection of nonrigid parts ». CAD Computer Aided Design, vol. 62. pp. 248-258.
Compte des citations dans Scopus : 20.

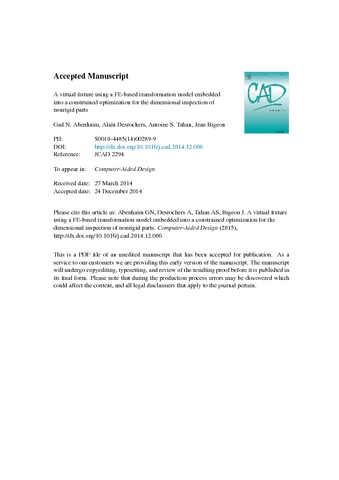

[thumbnail of A-virtual-fixture-using-a-FE-based-transformation-model-embedded-into-a-constrained-optimization-for-the-dimensional-inspection-of-nonrigid-parts.pdf]
Prévisualisation
PDF
A-virtual-fixture-using-a-FE-based-transformation-model-embedded-into-a-constrained-optimization-for-the-dimensional-inspection-of-nonrigid-parts.pdf

Télécharger (22MB) | Prévisualisation

Résumé

Virtually mounting nonrigid parts onto their fixture is proposed by researchers to remove the need for the use of complex physical inspection fixtures during the measurement process. Current approaches necessitate the pre-processing of the free-state nonrigid part’s point cloud into a suitable finite element (FE) mesh and are limited by the use of the boundary conditions setting methods available in FE software. In addition to these limits, these approaches do not take into account the forces used to restrain the part during the inspection, as commonly mandated for aerospace panels. To address these shortcomings, this paper presents a virtual fixture method that predicts the fixed shape of the part without the aforementioned drawbacks of current approaches. This is achieved by embedding information retrieved from a FE analysis of the nominal CAD model into a boundary displacement constrained optimization. To evaluate the proposed method, two case studies on physical parts are performed using the proposed virtual fixture method to evaluate the profile and assembly force specifications of each part.
