FRANÇAIS
A showcase of ÉTS researchers’ publications and other contributions
SEARCH

Martensitic transformation in AISI D2 tool steel during continuous cooling to 173K

Downloads

Downloads per month over past year

Ghasemi-Nanesa, Hadi, Jahazi, Mohammad et Naraghi, Reza. 2015. « Martensitic transformation in AISI D2 tool steel during continuous cooling to 173K ». Journal of Materials Science, vol. 50, nº 17. pp. 5758-5768.
Compte des citations dans Scopus : 10.

[img]
Preview
PDF
Jahazi M. 2015 9988 Martensitic transformation in AISI D2 tool steel.pdf - Accepted Version
Use licence: All rights reserved to copyright holder.

Download (909kB) | Preview

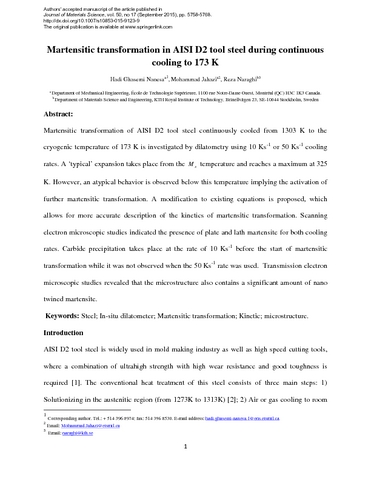

Abstract

Martensitic transformation of AISI D2 tool steel continuously cooled from 1303 K to the cryogenic temperature of 173 K is investigated by dilatometry using 10 or 50 K s−1 cooling rates. A ‘typical’ expansion takes place from the MsMs temperature and reaches a maximum at 325 K. However, an atypical behavior is observed below this temperature implying the activation of further martensitic transformation. A modification to existing equations is proposed, which allows for more accurate description of the kinetics of martensitic transformation. Scanning electron microscopic studies indicated the presence of plate and lath martensite for both cooling rates. Carbide precipitation takes place at the rate of 10 K s−1 before the start of martensitic transformation while it was not observed when the 50 K s−1 rate was used. Transmission electron microscopic studies revealed that the microstructure also contains a significant amount of nano-twinned martensite.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Jahazi, Mohammad
Affiliation: Génie mécanique
Date Deposited: 16 Jul 2015 20:59
Last Modified: 14 Sep 2017 14:14
URI: https://espace2.etsmtl.ca/id/eprint/9988

Actions (login required)

View Item View Item
