Real-time implementation of model-predictive control on seven-level packed U-cell inverter

Metri, Julie I. et Vahedi, Hani et Kanaan, Hadi Y. et Al-Haddad, Kamal. 2016. « Real-time implementation of model-predictive control on seven-level packed U-cell inverter ». IEEE Transactions on Industrial Electronics, vol. 63, nº 7. p. 4180-4186.

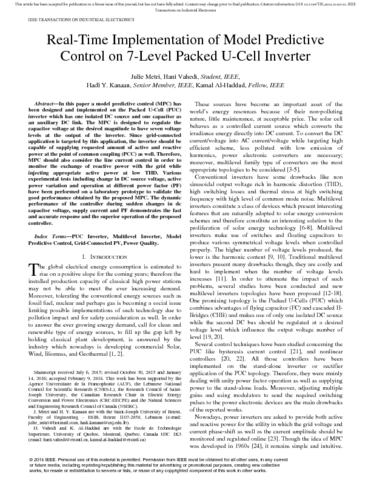

[img]
Prévisualisation
PDF
Al-Haddad K. 2016 13082 Real-Time Implementation of Model.pdf - Version acceptée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (2MB) | Prévisualisation

Résumé

In this paper, a model-predictive control (MPC) has been designed and implemented on the packed U-cell (PUC) inverter, which has one isolated dc source and one capacitor as an auxiliary dc link. The MPC is designed to regulate the capacitor voltage at the desired magnitude to have seven voltage levels at the output of the inverter. Since grid-connected application is targeted by this application, the inverter should be capable of supplying requested amount of active and reactive power at the point of common coupling (PCC) as well. Therefore, MPC should also consider the line-current control to monitor the exchange of reactive power with the grid while injecting appropriate active power at low total harmonic distortion (THD). Various experimental tests including change in dc-source voltage, active power variation, and operation at different power factor (PF) have been performed on a laboratory prototype to validate the good performance obtained by the proposed MPC. The dynamic performance of the controller during sudden changes in dc capacitor voltage, supply current, and PF demonstrates the fast and accurate response and the superior operation of the proposed controller.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Al Haddad, Kamal
Affiliation: Génie électrique
Date de dépôt: 07 juill. 2016 21:25
Dernière modification: 06 avr. 2017 20:58
URI: http://espace2.etsmtl.ca/id/eprint/13082
