On-chip dual-band rectangular slot antenna for single-chip millimeter-wave identification tag in standard CMOS technology

Burasa, Pascal et Djerafi, Tarek et Constantin, Nicolas G. et Wu, Ke. 2017. « On-chip dual-band rectangular slot antenna for single-chip millimeter-wave identification tag in standard CMOS technology ». IEEE Transactions on Antennas and Propagation.
(Sous presse)

[img]
Prévisualisation
PDF

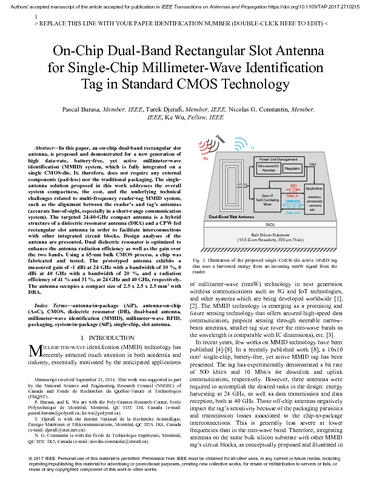

Constantin N. 2017 15336 On-Chip Dual-Band Rectangular.pdf - Version acceptée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (1MB) | Prévisualisation

Résumé

In this paper, an on-chip dual-band rectangular slot antenna, is proposed and demonstrated for a new generation of high data-rate, battery-free, yet active millimeter-wave identification (MMID) system, which is fully integrated on a single CMOS-die. It, therefore, does not require any external components (pad-less) nor the traditional packaging. The singleantenna solution proposed in this work addresses the overall system compactness, the cost, and the underlying technical challenges related to multi-frequency reader-tag MMID system, such as the alignment between the reader’s and tag’s antennas (accurate line-of-sight, especially in a short-range communication system). The targeted 24/40-GHz compact antenna is a hybrid structure of a dielectric resonator antenna (DRA) and a CPW fed rectangular slot antenna in order to facilitate interconnections with other integrated circuit blocks. Design analyses of the antenna are presented. Dual dielectric resonator is optimized to enhance the antenna radiation efficiency as well as the gain over the two bands. Using a 65-nm bulk CMOS process, a chip was fabricated and tested. The prototyped antenna exhibits a measured gain of -1 dBi at 24 GHz with a bandwidth of 19 %, 0 dBi at 40 GHz with a bandwidth of 20 %, and a radiation efficiency of 41 % and 31 %, at 24 GHz and 40 GHz, respectively. The antenna occupies a compact size of 2.5 x 2.5 x 2.5 mm3 with DRA.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Constantin, Nicolas
Affiliation: Génie électrique
Date de dépôt: 09 juin 2017 17:45
Dernière modification: 16 juin 2017 15:06
URI: http://espace2.etsmtl.ca/id/eprint/15336
