Impact of Bauschinger effect on the residual contact pressure of hydraulically expanded tube-to-tubesheet joints

Downloads

Downloads per month over past year

Bouzid, A. H., Mourad, A. H. I. et El Domiaty, A.. 2015. « Impact of Bauschinger effect on the residual contact pressure of hydraulically expanded tube-to-tubesheet joints ». [Conference paper]. Procedia Engineering, vol. 130. pp. 176-192.
Compte des citations dans Scopus : 5.

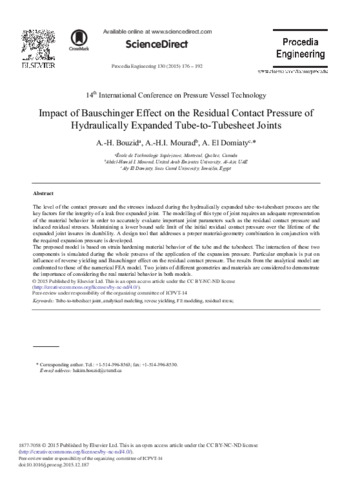

[thumbnail of Bouzid A 2015 12690.pdf]
Preview
PDF
Bouzid A 2015 12690.pdf - Published Version
Use licence: Creative Commons CC BY-NC-ND.

Download (869kB) | Preview

Abstract

The level of the contact pressure and the stresses induced during the hydraulically expanded tube–to-tubesheet process are the key factors for the integrity of a leak free expanded joint. The modelling of this type of joint requires an adequate representation of the material behavior in order to accurately evaluate important joint parameters such as the residual contact pressure and induced residual stresses. Maintaining a lower bound safe limit of the initial residual contact pressure over the lifetime of the expanded joint insures its durability. A design tool that addresses a proper material-geometry combination in conjunction with the required expansion pressure is developed. The proposed model is based on strain hardening material behavior of the tube and the tubesheet. The interaction of these two components is simulated during the whole process of the application of the expansion pressure. Particular emphasis is put on influence of reverse yielding and Bauschinger effect on the residual contact pressure. The results from the analytical model are confronted to those of the numerical FEA model. Two joints of different geometries and materials are considered to demonstrate the importance of considering the real material behavior in both models.

Item Type: Peer reviewed article published in a journal
Additional Information: Thématique : Pressure Vessel Technology: Preparing for the Future (14th International Conference on Pressure Vessel Technology)
Professor:
Professor
Bouzid, Hakim
Affiliation: Génie mécanique
Date Deposited: 07 Jun 2016 16:08
Last Modified: 19 Oct 2020 15:32
URI: https://espace2.etsmtl.ca/id/eprint/12690
