Cracking mechanisms in large size ingots of high nickel content low alloyed steel

Bitterlin, Matthieu, Loucif, Abdelhalim, Charbonnier, Nicolas, Jahazi, Mohammad, Lapierre-Boire, Louis-Philippe et Morin, Jean-Benoît. 2016. « Cracking mechanisms in large size ingots of high nickel content low alloyed steel ». Engineering Failure Analysis, vol. 68. pp. 122-131.
Compte des citations dans Scopus : 19.

Preview

PDF Jahazi M 2016 12740 Cracking mechanisms in large size ingots.pdf - Accepted Version Use licence: Creative Commons CC BY-NC-ND. Download (2MB) | Preview

Abstract

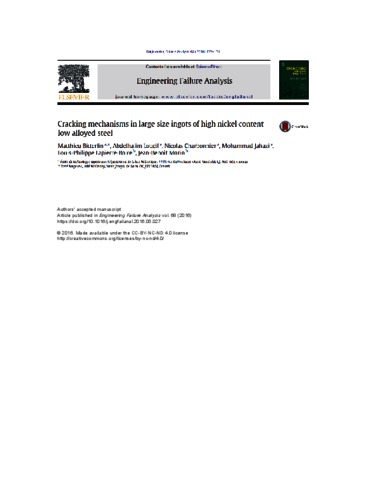

This study is focused on determining the possible root causes for cracking after open die forging of large size ingots made of high nickel medium carbon low alloy steels. Optical and scanning electron microscopies as well as Energy Dispersion Spectroscopy (EDS) were used to examine the microstructure of the samples taken out of a cracked forged ingot. The large size of the samples permitted to investigate microstructure at different locations at the surface and in depth. Chemical analysis revealed chromium and oxygen enrichment at the grain boundaries. Grain size measurement indicated clear differences between “clean” surface zones and cracked ones, and between surface and in depth regions. The analyses indicated that fracture phenomena may be due to abnormal grain size which promotes oxide penetration into grain boundaries, resulting in their embrittlement and cracking upon cooling.

Item Type:	Peer reviewed article published in a journal
Professor:	Professor Jahazi, Mohammad
Affiliation:	Génie mécanique
Date Deposited:	08 Jun 2016 20:33
Last Modified:	13 Apr 2023 16:08
URI:	https://espace2.etsmtl.ca/id/eprint/12740

Actions (login required)

View Item
