Masoumi, F., Shahriari, D., Jahazi, M., Cormier, J. and Devaux, A..
2016.

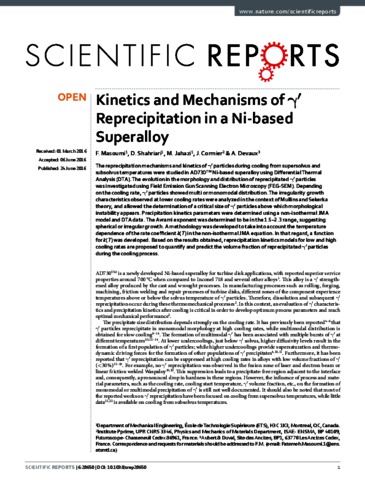

« Kinetics and mechanisms of γ′ reprecipitation in a Ni-based superalloy ».
Scientific Reports, vol. 6.
Compte des citations dans Scopus : 91.
Preview |
PDF
Jahazi M. 2016 13098 Kinetics and Mechanisms of y Reprecipitation.pdf - Published Version Use licence: Creative Commons CC BY. Download (2MB) | Preview |
Abstract
The reprecipitation mechanisms and kinetics of γ′ particles during cooling from supersolvus and subsolvus temperatures were studied in AD730TM Ni-based superalloy using Differential Thermal Analysis (DTA). The evolution in the morphology and distribution of reprecipitated γ′ particles was investigated using Field Emission Gun Scanning Electron Microscopy (FEG-SEM). Depending on the cooling rate, γ′ particles showed multi or monomodal distribution. The irregularity growth characteristics observed at lower cooling rates were analyzed in the context of Mullins and Sekerka theory, and allowed the determination of a critical size of γ′ particles above which morphological instability appears. Precipitation kinetics parameters were determined using a non-isothermal JMA model and DTA data. The Avrami exponent was determined to be in the 1.5–2.3 range, suggesting spherical or irregular growth. A methodology was developed to take into account the temperature dependence of the rate coefficient k(T) in the non-isothermal JMA equation. In that regard, a function for k(T) was developed. Based on the results obtained, reprecipitation kinetics models for low and high cooling rates are proposed to quantify and predict the volume fraction of reprecipitated γ′ particles during the cooling process.
Item Type: | Peer reviewed article published in a journal |
---|---|
Additional Information: | Identifiant de l'article: 28650 |
Professor: | Professor Jahazi, Mohammad |
Affiliation: | Génie mécanique |
Date Deposited: | 12 Jul 2016 15:45 |
Last Modified: | 13 Apr 2023 16:08 |
URI: | https://espace2.etsmtl.ca/id/eprint/13098 |
Actions (login required)
View Item |
