Tool wear characteristics and effect on microstructure in Ti-6Al-4V friction stir welded joints

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Fall, Ameth, Fesharaki, Mostafa Hashemi, Khodabandeh, Ali Reza et Jahazi, Mohammad. 2016. « Tool wear characteristics and effect on microstructure in Ti-6Al-4V friction stir welded joints ». Metals, vol. 6, nº 11. pp. 275-286.
Compte des citations dans Scopus : 46.

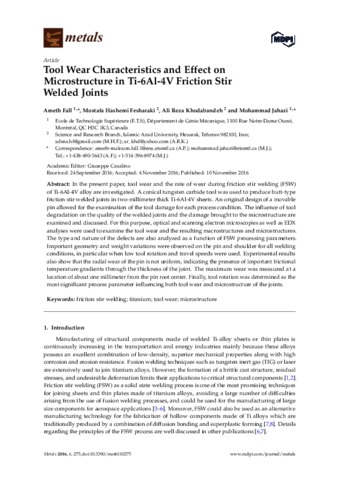

[thumbnail of Jahazi M 2016 14160 Tool wear characteristics and effect.pdf]
Prévisualisation
PDF
Jahazi M 2016 14160 Tool wear characteristics and effect.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY.

Télécharger (3MB) | Prévisualisation

Résumé

In the present paper, tool wear and the rate of wear during friction stir welding (FSW) of Ti-6Al-4V alloy are investigated. A conical tungsten carbide tool was used to produce butt-type friction stir welded joints in two-millimeter thick Ti-6Al-4V sheets. An original design of a movable pin allowed for the examination of the tool damage for each process condition. The influence of tool degradation on the quality of the welded joints and the damage brought to the microstructure are examined and discussed. For this purpose, optical and scanning electron microscopies as well as EDX analyses were used to examine the tool wear and the resulting macrostructures and microstructures. The type and nature of the defects are also analyzed as a function of FSW processing parameters. Important geometry and weight variations were observed on the pin and shoulder for all welding conditions, in particular when low tool rotation and travel speeds were used. Experimental results also show that the radial wear of the pin is not uniform, indicating the presence of important frictional temperature gradients through the thickness of the joint. The maximum wear was measured at a location of about one millimeter from the pin root center. Finally, tool rotation was determined as the most significant process parameter influencing both tool wear and microstructure of the joints.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Jahazi, Mohammad
Affiliation: Génie mécanique
Date de dépôt: 16 déc. 2016 14:50
Dernière modification: 13 avr. 2023 16:08
URI: https://espace2.etsmtl.ca/id/eprint/14160
