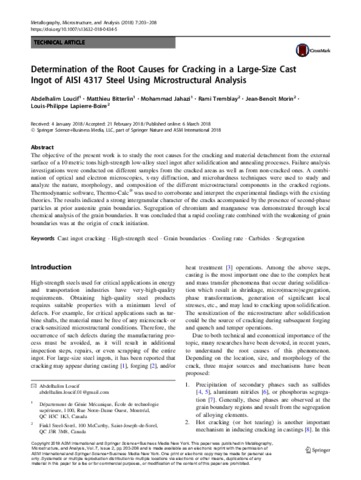

Determination of the root causes for cracking in a large-size cast ingot of AISI 4317 steel using microstructural analysis

Loucif, Abdelhalim, Bitterlin, Matthieu, Jahazi, Mohammad, Tremblay, Rami, Morin, Jean-Benoît et Lapierre-Boire, Louis-Philippe. 2018. « Determination of the root causes for cracking in a large-size cast ingot of AISI 4317 steel using microstructural analysis ». Metallography, Microstructure, and Analysis, vol. 7, nº 2. pp. 203-208.
Compte des citations dans Scopus : 2.

Preview

PDF Jahazi M 2018 16794.pdf - Published Version Use licence: All rights reserved to copyright holder. Download (1MB) | Preview

Abstract

The objective of the present work is to study the root causes for the cracking and material detachment from the external surface of a 10 metric tons high-strength low-alloy steel ingot after solidification and annealing processes. Failure analysis investigations were conducted on different samples from the cracked areas as well as from non-cracked ones. A combination of optical and electron microscopies, x-ray diffraction, and microhardness techniques were used to study and analyze the nature, morphology, and composition of the different microstructural components in the cracked regions. Thermodynamic software, Thermo-Calc® was used to corroborate and interpret the experimental findings with the existing theories. The results indicated a strong intergranular character of the cracks accompanied by the presence of second-phase particles at prior austenite grain boundaries. Segregation of chromium and manganese was demonstrated through local chemical analysis of the grain boundaries. It was concluded that a rapid cooling rate combined with the weakening of grain boundaries was at the origin of crack initiation.

Item Type:	Peer reviewed article published in a journal
Professor:	Professor Jahazi, Mohammad
Affiliation:	Génie mécanique
Date Deposited:	04 Jul 2018 12:42
Last Modified:	13 Apr 2023 16:08
URI:	https://espace2.etsmtl.ca/id/eprint/16794

Actions (login required)

View Item
