FRANÇAIS
A showcase of ÉTS researchers’ publications and other contributions
SEARCH

Hot deformation behavior of a nickel-modified AISI 4330 steel

Downloads

Downloads per month over past year

Bitterlin, Matthieu, Shahriari, Davood, Lapierre-Boire, Louis-Philippe, Morin, Jean-Benoît et Jahazi, Mohammad. 2018. « Hot deformation behavior of a nickel-modified AISI 4330 steel ». ISIJ International, vol. 58, nº 9. pp. 1711-1720.
Compte des citations dans Scopus : 2.

[img]
Preview
PDF
Jahazi M 2018 17399.pdf - Accepted Version
Use licence: All rights reserved to copyright holder.

Download (1MB) | Preview

Abstract

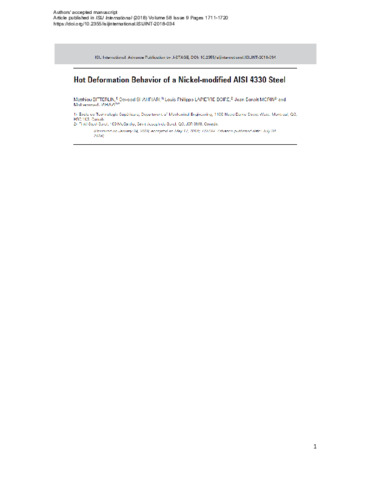

Hot compression of a nickel-modified AISI 4330 steel was studied over a wide range of temperatures and strain rates using Gleeble 3800 thermomechanical simulator. Samples were quenched at different stages of deformation to study microstructure evolution using optical and electron microscopies. Stress-strain curves showed that both dynamic recovery (DRV) and dynamic recrystallization (DRX) take place for certain deformation conditions. However, in comparison to low alloyed steels with lower nickel content, the nickel-modified AISI 4330 steel showed significantly lower workability particularly, resulting from the temperature and strain rate ranges over which DRX takes place. The kinetics of recrystallization were studied and the stress constants and apparent activation energies were determined for the investigated alloy and compared with similar alloy with lower nickel content so as to quantify the influence of nickel. The obtained results are interpreted in terms of the influence of nickel on dislocation dynamics and therefore the softening process at high temperature under various ranges of strain rate. The findings will help a better design of the forging process of these alloys which are prone to hot cracking during open die forging.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Jahazi, Mohammad
Affiliation: Génie mécanique
Date Deposited: 16 Oct 2018 20:08
Last Modified: 17 Jun 2020 15:23
URI: https://espace2.etsmtl.ca/id/eprint/17399

Actions (login required)

View Item View Item
