Synthesis and design of a one degree-of-freedom planar deployable mechanism with a large expansion ratio

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

St-Onge, David et Gosselin, Clément. 2016. « Synthesis and design of a one degree-of-freedom planar deployable mechanism with a large expansion ratio ». Journal of Mechanisms and Robotics, vol. 8, nº 2.
Compte des citations dans Scopus : 26.

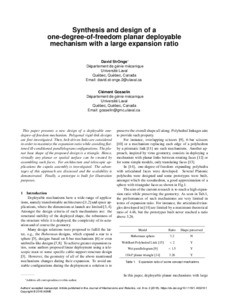

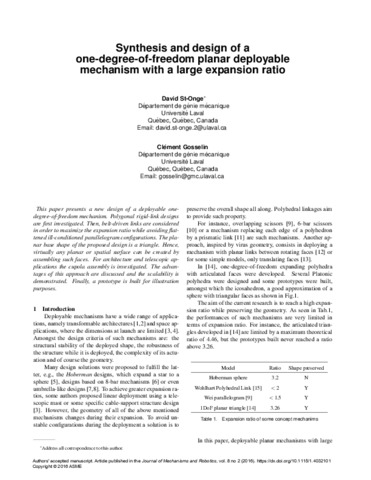

[thumbnail of St-Onge D 2016 18903.pdf]
Prévisualisation
PDF
St-Onge D 2016 18903.pdf - Version acceptée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (5MB) | Prévisualisation

Résumé

This paper presents a new design of a deployable one degree-of-freedom (DOF) mechanism. Polygonal rigid-link designs are first investigated. Then, belt-driven links are considered in order to maximize the expansion ratio while avoiding flattened ill-conditioned parallelogram configurations. The planar basic shape of the proposed design is a triangle. Hence, virtually any planar or spatial surface can be created by assembling such faces. For architecture and telescopic applications, the cupola assembly is investigated. The advantages of this approach are discussed, and the scalability is demonstrated. Finally, a prototype is built for illustration purposes.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
St-Onge, David
Affiliation: Autres
Date de dépôt: 03 juill. 2019 21:37
Dernière modification: 30 juill. 2019 15:47
URI: https://espace2.etsmtl.ca/id/eprint/18903
