Challenges of the usual graphical methods used to characterize phase change materials by differential scanning calorimetry

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Gibout, Stéphane, Franquet, Erwin, Haillot, Didier, Bédécarrats, Jean-Pierre et Dumas, Jean-Pierre. 2018. « Challenges of the usual graphical methods used to characterize phase change materials by differential scanning calorimetry ». Applied Sciences, vol. 8, nº 1.
Compte des citations dans Scopus : 22.

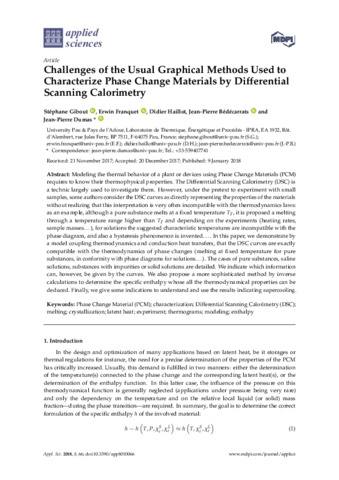

[thumbnail of Haillot D 2018 19175.pdf]
Prévisualisation
PDF
Haillot D 2018 19175.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY.

Télécharger (2MB) | Prévisualisation

Résumé

Modeling the thermal behavior of a plant or devices using Phase Change Materials (PCM) requires to know their thermophysical properties. The Differential Scanning Calorimetry (DSC) is a technic largely used to investigate them. However, under the pretext to experiment with small samples, some authors consider the DSC curves as directly representing the properties of the materials without realizing that this interpretation is very often incompatible with the thermodynamics laws: as an example, although a pure substance melts at a fixed temperature TF, it is proposed a melting through a temperature range higher than TF and depending on the experiments (heating rates, sample masses. . . ), for solutions the suggested characteristic temperatures are incompatible with the phase diagram, and also a hysteresis phenomenon is invented. . . . In this paper, we demonstrate by a model coupling thermodynamics and conduction heat transfers, that the DSC curves are exactly compatible with the thermodynamics of phase changes (melting at fixed temperature for pure substances, in conformity with phase diagrams for solutions. . . ). The cases of pure substances, saline solutions, substances with impurities or solid solutions are detailed. We indicate which information can, however, be given by the curves. We also propose a more sophisticated method by inverse calculations to determine the specific enthalpy whose all the thermodynamical properties can be deduced. Finally, we give some indications to understand and use the results indicating supercooling.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Haillot, Didier
Affiliation: Autres
Date de dépôt: 08 août 2019 19:29
Dernière modification: 19 oct. 2020 15:26
URI: https://espace2.etsmtl.ca/id/eprint/19175
