Thermodynamic modeling of refractory/mould slag/steel interactions concerning slag crawling

Downloads

Downloads per month over past year

Moosavi-Khoonsari, Elmira, Zinngrebe, Enno, van der Laan, Sieger R., Kalter, Rudi et Mensonides, Fokko. 2019. « Thermodynamic modeling of refractory/mould slag/steel interactions concerning slag crawling ». In METEC & 4th ESTAD 2019 : European Steel technology and Application Days (Düsseldorf, Germany, June 24-28, 2019)

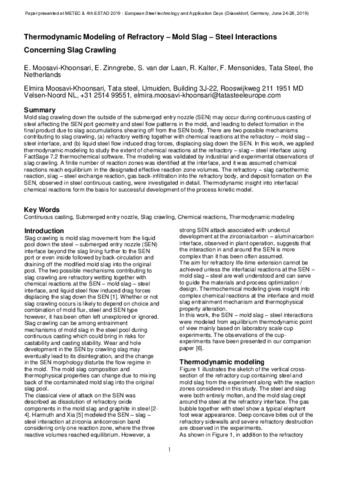

[thumbnail of Moosavi-Khoonsari-E-2019-22978.pdf]
Preview
PDF
Moosavi-Khoonsari-E-2019-22978.pdf - Accepted Version
Use licence: All rights reserved to copyright holder.

Download (770kB) | Preview

Abstract

Mold slag crawling down the outside of the submerged entry nozzle (SEN) may occur during continuous casting of steel affecting the SEN port geometry and steel flow patterns in the mold, and leading to defect formation in the final product due to slag accumulations shearing off from the SEN body. There are two possible mechanisms contributing to slag crawling, (a) refractory wetting together with chemical reactions at the refractory – mold slag – steel interface, and (b) liquid steel flow induced drag forces, displacing slag down the SEN. In this work, we applied thermodynamic modeling to study the extent of chemical reactions at the refractory – slag – steel interface using FactSage 7.2 thermochemical software. The modeling was validated by industrial and experimental observations of slag crawling. A finite number of reaction zones was identified at the interface, and it was assumed chemical reactions reach equilibrium in the designated effective reaction zone volumes. The refractory – slag carbothermic reaction, slag – steel exchange reaction, gas back-infiltration into the refractory body, and deposit formation on the SEN, observed in steel continuous casting, were investigated in detail. Thermodynamic insight into interfacial chemical reactions form the basis for successful development of the process kinetic model.

Item Type: Conference proceeding
Professor:
Professor
Moosavi-Khoonsari, Elmira
Affiliation: Autres
Date Deposited: 03 Aug 2021 14:04
Last Modified: 31 May 2022 17:00
URI: https://espace2.etsmtl.ca/id/eprint/22978
