Unstable landing platform pose estimation based on Camera and Range Sensor Homogeneous Fusion (CRHF)

Downloads

Downloads per month over past year

Sefidgar, Mohammad et Landry, René Jr. 2022. « Unstable landing platform pose estimation based on Camera and Range Sensor Homogeneous Fusion (CRHF) ». Drones, vol. 6, nº 3.

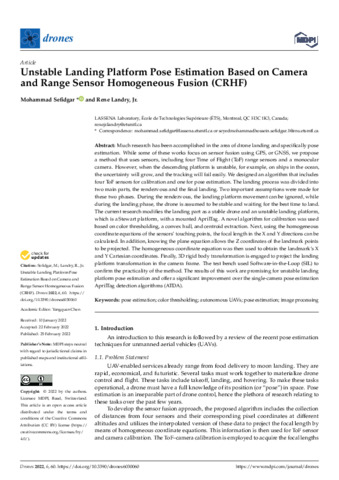

[thumbnail of Landry-R-2022-24128.pdf]
Preview
PDF
Landry-R-2022-24128.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (10MB) | Preview

Abstract

Much research has been accomplished in the area of drone landing and specifically pose estimation. While some of these works focus on sensor fusion using GPS, or GNSS, we propose a method that uses sensors, including four Time of Flight (ToF) range sensors and a monocular camera. However, when the descending platform is unstable, for example, on ships in the ocean, the uncertainty will grow, and the tracking will fail easily. We designed an algorithm that includes four ToF sensors for calibration and one for pose estimation. The landing process was divided into two main parts, the rendezvous and the final landing. Two important assumptions were made for these two phases. During the rendezvous, the landing platform movement can be ignored, while during the landing phase, the drone is assumed to be stable and waiting for the best time to land. The current research modifies the landing part as a stable drone and an unstable landing platform, which is a Stewart platform, with a mounted AprilTag. A novel algorithm for calibration was used based on color thresholding, a convex hull, and centroid extraction. Next, using the homogeneous coordinate equations of the sensors’ touching points, the focal length in the X and Y directions can be calculated. In addition, knowing the plane equation allows the Z coordinates of the landmark points to be projected. The homogeneous coordinate equation was then used to obtain the landmark’s X and Y Cartesian coordinates. Finally, 3D rigid body transformation is engaged to project the landing platform transformation in the camera frame. The test bench used Software-in-the-Loop (SIL) to confirm the practicality of the method. The results of this work are promising for unstable landing platform pose estimation and offer a significant improvement over the single-camera pose estimation AprilTag detection algorithms (ATDA).

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Landry, René Jr
Affiliation: Génie électrique
Date Deposited: 04 Apr 2022 18:10
Last Modified: 23 Jun 2022 13:37
URI: https://espace2.etsmtl.ca/id/eprint/24128
