Morphing winglet design for aerodynamic performance optimization of the CRJ-700 Aircraft. Part 1 - Structural design

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Meyran, Paul, Pain, Hugo, Botez, Ruxandra Michaela et Laliberté, Jérémy. 2021. « Morphing winglet design for aerodynamic performance optimization of the CRJ-700 Aircraft. Part 1 - Structural design ». INCAS Bulletin, vol. 13, nº 4. pp. 113-128.
Compte des citations dans Scopus : 2.

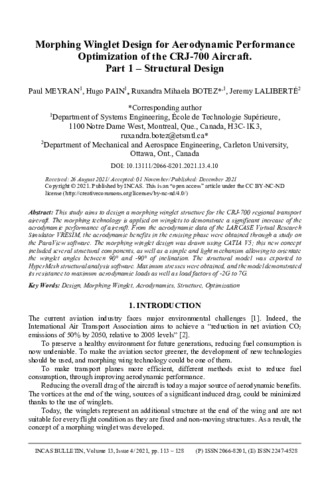

[thumbnail of Botez-R-2022-24332.pdf]
Prévisualisation
PDF
Botez-R-2022-24332.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY-NC-ND.

Télécharger (3MB) | Prévisualisation

Résumé

This study aims to design a morphing winglet structure for the CRJ-700 regional transport aircraft. The morphing technology is applied on winglets to demonstrate a significant increase of the aerodynamic performance of aircraft. From the aerodynamic data of the LARCASE Virtual Research Simulator VRESIM, the aerodynamic benefits in the cruising phase were obtained through a study on the ParaView software. The morphing winglet design was drawn using CATIA V5; this new concept included several structural components, as well as a simple and light mechanism allowing to orientate the winglet angles between 90° and -90° of inclination. The structural model was exported to HyperMesh structural analysis software. Maximum stresses were obtained, and the model demonstrated its resistance to maximum aerodynamic loads as well as load factors of -2G to 7G.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Botez, Ruxandra
Affiliation: Génie des systèmes
Date de dépôt: 04 mai 2022 14:23
Dernière modification: 23 juin 2022 14:50
URI: https://espace2.etsmtl.ca/id/eprint/24332
