FRANÇAIS
A showcase of ÉTS researchers’ publications and other contributions
SEARCH

Indentation fracture toughness of semiconducting gallium arsenide at elevated temperatures

Downloads

Downloads per month over past year

Moulins, Anthony, Andrusyszyn, François, Dugnani, Roberto and Zednik, Ricardo J.. 2022. « Indentation fracture toughness of semiconducting gallium arsenide at elevated temperatures ». Engineering Failure Analysis, vol. 137.
Compte des citations dans Scopus : 2.

[thumbnail of Zednik-R-2022-24370.pdf]
Preview
PDF
Zednik-R-2022-24370.pdf - Accepted Version
Use licence: Creative Commons CC BY-NC-ND.

Download (854kB) | Preview

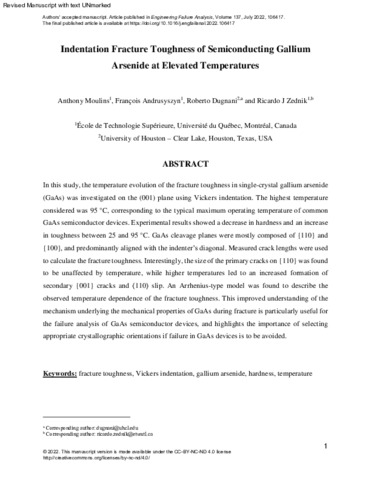

Abstract

In this study, the temperature evolution of the fracture toughness in single-crystal gallium arsenide (GaAs) was investigated on the (0 0 1) plane using Vickers indentation. The highest temperature considered was 95 °C, corresponding to the typical maximum operating temperature of common GaAs semiconductor devices. Experimental results showed a decrease in hardness and an increase in toughness between 25 and 95 °C. GaAs cleavage planes were mostly composed of {1 1 0} and {1 0 0}, and predominantly aligned with the indenter’s diagonal. Measured crack lengths were used to calculate the fracture toughness. Interestingly, the size of the primary cracks on {1 1 0} was found to be unaffected by temperature, while higher temperatures led to an increased formation of secondary {0 0 1} cracks and 〈110〉 slip. An Arrhenius-type model was found to describe the observed temperature dependence of the fracture toughness. This improved understanding of the mechanism underlying the mechanical properties of GaAs during fracture is particularly useful for the failure analysis of GaAs semiconductor devices, and highlights the importance of selecting appropriate crystallographic orientations if failure in GaAs devices is to be avoided.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Zednik, Ricardo
Affiliation: Génie mécanique
Date Deposited: 01 Jun 2022 17:53
Last Modified: 01 Jun 2022 18:50
URI: https://espace2.etsmtl.ca/id/eprint/24370

Actions (login required)

View Item View Item
