FE modelling and simulation of the size effect of RC T-beams strengthened in shear with externally bonded FRP fabrics


Downloads per month over past year

Abbasi, Amirali, Benzeguir, Zine El Abidine, Chaallal, Omar et El-Saikaly, Georges. 2022. « FE modelling and simulation of the size effect of RC T-beams strengthened in shear with externally bonded FRP fabrics ». Journal of Composites Science, vol. 6, nº 4.

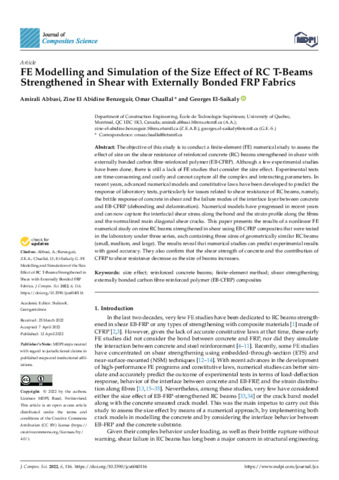

[thumbnail of Chaallal-O-2022-24418.pdf]
Chaallal-O-2022-24418.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (8MB) | Preview


The objective of this study is to conduct a finite-element (FE) numerical study to assess the effect of size on the shear resistance of reinforced concrete (RC) beams strengthened in shear with externally bonded carbon fibre-reinforced polymer (EB-CFRP). Although a few experimental studies have been done, there is still a lack of FE studies that consider the size effect. Experimental tests are time-consuming and costly and cannot capture all the complex and interacting parameters. In recent years, advanced numerical models and constitutive laws have been developed to predict the response of laboratory tests, particularly for issues related to shear resistance of RC beams, namely, the brittle response of concrete in shear and the failure modes of the interface layer between concrete and EB-CFRP (debonding and delamination). Numerical models have progressed in recent years and can now capture the interfacial shear stress along the bond and the strain profile along the fibres and the normalized main diagonal shear cracks. This paper presents the results of a nonlinear FE numerical study on nine RC beams strengthened in shear using EB-CFRP composites that were tested in the laboratory under three series, each containing three sizes of geometrically similar RC beams (small, medium, and large). The results reveal that numerical studies can predict experimental results with good accuracy. They also confirm that the shear strength of concrete and the contribution of CFRP to shear resistance decrease as the size of beams increases.

Item Type: Peer reviewed article published in a journal
Chaallal, Omar
El-Saikaly, Georges
Affiliation: Génie de la construction, Génie de la construction
Date Deposited: 02 Jun 2022 19:09
Last Modified: 23 Jun 2022 15:05
