Characterization of the elastic, piezoelectric, and dielectric properties of lithium niobate from 25 degrees C to 900 degrees C using electrochemical impedance spectroscopy resonance method

Downloads

Downloads per month over past year

Bouchy, Sevan, Zednik, Ricardo J. et Belanger, Pierre. 2022. « Characterization of the elastic, piezoelectric, and dielectric properties of lithium niobate from 25 degrees C to 900 degrees C using electrochemical impedance spectroscopy resonance method ». Materials, vol. 15, nº 13.

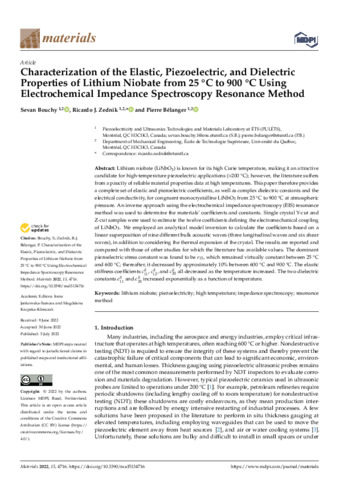

[thumbnail of Zednik-R-2022-25047.pdf]
Preview
PDF
Zednik-R-2022-25047.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (1MB) | Preview

Abstract

Lithium niobate (LiNbO3) is known for its high Curie temperature, making it an attractive candidate for high-temperature piezoelectric applications (>200 ° C); however, the literature suffers from a paucity of reliable material properties data at high temperatures. This paper therefore provides a complete set of elastic and piezoelectric coefficients, as well as complex dielectric constants and the electrical conductivity, for congruent monocrystalline LiNbO3 from 25 °C to 900 °C at atmospheric pressure. An inverse approach using the electrochemical impedance spectroscopy (EIS) resonance method was used to determine the materials’ coefficients and constants. Single crystal Y-cut and Z-cut samples were used to estimate the twelve coefficients defining the electromechanical coupling of LiNbO3. We employed an analytical model inversion to calculate the coefficients based on a linear superposition of nine different bulk acoustic waves (three longitudinal waves and six shear waves), in addition to considering the thermal expansion of the crystal. The results are reported and compared with those of other studies for which the literature has available values. The dominant piezoelectric stress constant was found to be e15, which remained virtually constant between 25 °C and 600 °C; thereafter, it decreased by approximately 10% between 600 °C and 900 ° C. The elastic stiffness coefficients cE 11, cE 12, and cE 33 all decreased as the temperature increased. The two dielectric constants eS 11 and eS 33 increased exponentially as a function of temperature.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Zednik, Ricardo
Bélanger, Pierre
Affiliation: Génie mécanique, Génie mécanique
Date Deposited: 28 Jul 2022 20:57
Last Modified: 03 Oct 2022 19:33
URI: https://espace2.etsmtl.ca/id/eprint/25047
