Influence of post-processing conditions on the microstructure, static, and fatigue resistance of laser powder bed fused Ti-6Al-4V components

Downloads

Downloads per month over past year

Jimenez, Erika Herrera, Kreitcberg, Alena, Moquin, Etienne et Brailovski, Vladimir. 2022. « Influence of post-processing conditions on the microstructure, static, and fatigue resistance of laser powder bed fused Ti-6Al-4V components ». Journal of Manufacturing and Materials Processing, vol. 6, nº 4.

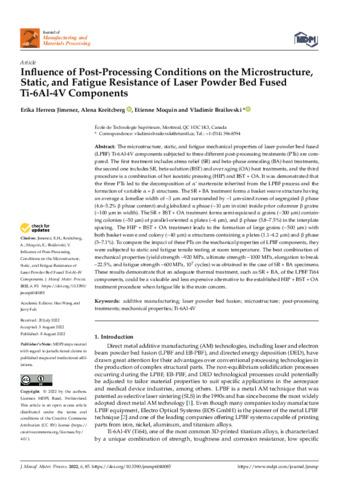

[thumbnail of Brailovski-V-2022-25584.pdf]
Preview
PDF
Brailovski-V-2022-25584.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (59MB) | Preview

Abstract

The microstructure, static, and fatigue mechanical properties of laser powder bed fused (LPBF) Ti-6Al-4V components subjected to three different post-processing treatments (PTs) are com- pared. The first treatment includes stress relief (SR) and beta-phase annealing (BA) heat treatments, the second one includes SR, beta-solution (BST) and over aging (OA) heat treatments, and the third procedure is a combination of hot isostatic pressing (HIP) and BST + OA. It was demonstrated that the three PTs led to the decomposition of α’ martensite inherited from the LPBF process and the formation of variable α + β structures. The SR + BA treatment forms a basket weave structure having an average α lamellae width of ~3 μm and surrounded by ~1 μm-sized zones of segregated β phase (4.6–5.2% β phase content) and globalized α phase (~10 μm in size) inside prior columnar β grains (~100 μm in width). The SR + BST + OA treatment forms semi-equiaxed α grains (~300 μm) contain- ing colonies (~50 μm) of parallel-oriented α plates (~6 μm), and β phase (5.8–7.5%) in the interplate spacing. The HIP + BST + OA treatment leads to the formation of large grains (~500 μm) with both basket weave and colony (~40 μm) α structures containing α plates (1.1–4.2 μm) and β phase (5–7.1%). To compare the impact of these PTs on the mechanical properties of LPBF components, they were subjected to static and fatigue tensile testing at room temperature. The best combination of mechanical properties (yield strength ~920 MPa, ultimate strength ~1000 MPa, elongation to break ~22.5%, and fatigue strength ~600 MPa, 107 cycles) was obtained in the case of SR + BA specimens. These results demonstrate that an adequate thermal treatment, such as SR + BA, of the LPBF Ti64 components, could be a valuable and less expensive alternative to the established HIP + BST + OA treatment procedure when fatigue life is the main concern.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Brailovski, Vladimir
Affiliation: Génie mécanique
Date Deposited: 05 Oct 2022 16:40
Last Modified: 12 Oct 2022 18:04
URI: https://espace2.etsmtl.ca/id/eprint/25584
