Thermodynamic analysis of zinc ferrite (ZnFe2O4) formation inside the HIsarna off-gas system

Hosseini, Ashkan, Moosavi-Khoonsari, Elmira, Meijer, Koen, Hage, Johannes, Peeters, Tim, Offerman, Erik et Yang, Yongxiang. 2023. « Thermodynamic analysis of zinc ferrite (ZnFe2O4) formation inside the HIsarna off-gas system ». Ironmaking & Steelmaking, vol. 50, nº 5. pp. 485-499.
Compte des citations dans Scopus : 1.

Prévisualisation

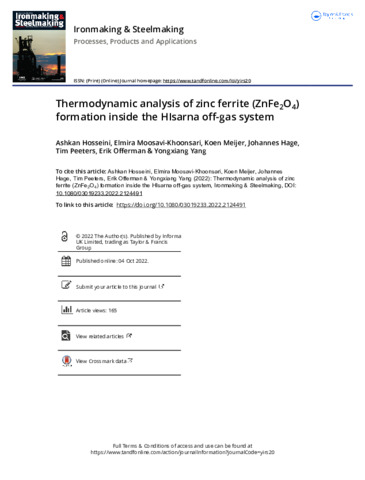

PDF Moosavi-E-2022-25753.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY-NC-ND. Télécharger (4MB) | Prévisualisation

Résumé

HIsarna reactor is characterized by a high raw materials versatility and is therefore attractive for processing secondary iron sources. Among the materials that can be recycled through HIsarna, zinc-bearing material has drawn a special attention. Based on the plant data, once dust-containing Zinc was injected into the main reactor, a final collected dust with a zinc content of 16% was achieved which opened up possibilities of higher enrichment for direct reuse in Zn smelting as a secondary source and an alternative for Zn ore (the primary source). However Zn vapor can react with iron oxide to form zinc ferrite (ZnFe2O4), which is an undesired product. Hence, the main focus of this study is to minimize the formation of ZnFe2O using thermodynamic (FactSage) and computational fluid dynamic tools. After detecting regions with high potential of ZnFe2O4 formation, proper geometrical and operational modifications of the off-gas system is proposed to minimize the formation of zinc ferrite.

Type de document:	Article publié dans une revue, révisé par les pairs
Professeur:	Professeur Moosavi-Khoonsari, Elmira
Affiliation:	Génie mécanique
Date de dépôt:	08 nov. 2022 17:42
Dernière modification:	05 janv. 2024 14:55
URI:	https://espace2.etsmtl.ca/id/eprint/25753
