FRANÇAIS
A showcase of ÉTS researchers’ publications and other contributions
SEARCH

Microstructure, mechanical and superelastic properties of Ti-Zr-Nb alloy for biomedical application subjected to equal channel angular pressing and annealing

Downloads

Downloads per month over past year

Sheremetyev, Vadim, Derkach, Mikhail, Churakova, Anna, Komissarov, Aleksander, Gunderov, Dmitry, Raab, Georgy, Cheverikin, Vladimir, Prokoshkin, Sergey et Brailovski, Vladimir. 2022. « Microstructure, mechanical and superelastic properties of Ti-Zr-Nb alloy for biomedical application subjected to equal channel angular pressing and annealing ». Metals, vol. 12, nº 10.

[thumbnail of Brailovski-V-2022-25770.pdf]
Preview
PDF
Brailovski-V-2022-25770.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (9MB) | Preview

Abstract

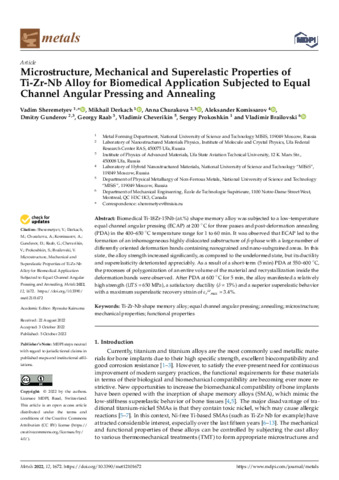

Biomedical Ti-18Zr-15Nb (at.%) shape memory alloy was subjected to a low-temperature equal channel angular pressing (ECAP) at 200 ◦C for three passes and post-deformation annealing (PDA) in the 400–650 ◦C temperature range for 1 to 60 min. It was observed that ECAP led to the formation of an inhomogeneous highly dislocated substructure of β-phase with a large number of differently oriented deformation bands containing nanograined and nano-subgrained areas. In this state, the alloy strength increased significantly, as compared to the undeformed state, but its ductility and superelasticity deteriorated appreciably. As a result of a short-term (5 min) PDA at 550–600 ◦C, the processes of polygonization of an entire volume of the material and recrystallization inside the deformation bands were observed. After PDA at 600 ◦C for 5 min, the alloy manifested a relatively high strength (UTS = 650 MPa), a satisfactory ductility (δ = 15%) and a superior superelastic behavior with a maximum superelastic recovery strain of εrsemax = 3.4%

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Brailovski, Vladimir
Affiliation: Génie mécanique
Date Deposited: 11 Nov 2022 21:01
Last Modified: 18 Nov 2022 15:50
URI: https://espace2.etsmtl.ca/id/eprint/25770

Actions (login required)

View Item View Item
