A compact low-loss broadband polarization independent silicon 50/50 splitter


Downloads per month over past year

Nair, Devika Padmakumar and Ménard, Michaël. 2021. « A compact low-loss broadband polarization independent silicon 50/50 splitter ». IEEE Photonics Journal, vol. 13, nº 4.
Compte des citations dans Scopus : 8.

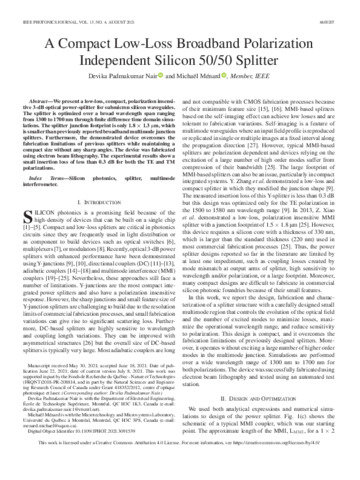

[thumbnail of Menard-M-2021-25826.pdf]
Menard-M-2021-25826.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (2MB) | Preview


We present a low-loss, compact, polarization insensi- tive 3-dB optical power-splitter for submicron silicon waveguides. The splitter is optimized over a broad wavelength span ranging from 1300 to 1700 nm through finite difference time domain simu- lations. The splitter junction footprint is only 1.8 × 1.3 μm, which is smaller than previously reported broadband multimode junction splitters. Furthermore, the demonstrated device overcomes the fabrication limitations of previous splitters while maintaining a compact size without any sharp angles. The device was fabricated using electron beam lithography. The experimental results show a small insertion loss of less than 0.3 dB for both the TE and TM polarizations.

Item Type: Peer reviewed article published in a journal
Ménard, Michaël
Affiliation: Autres
Date Deposited: 16 Nov 2022 20:59
Last Modified: 08 Aug 2023 18:54
