Optimization and design of a flexible droop nose leading edge morphing wing based on a novel black widow optimization (B.W.O.) algorithm—part II

Downloads

Downloads per month over past year

Bashir, Musavir, Longtin-Martel, Simon, Zonzini, Nicola, Botez, Ruxandra Mihaela, Ceruti, Alessandro and Wong, Tony. 2022. « Optimization and design of a flexible droop nose leading edge morphing wing based on a novel black widow optimization (B.W.O.) algorithm—part II ». Designs, vol. 6, nº 6.
Compte des citations dans Scopus : 4.

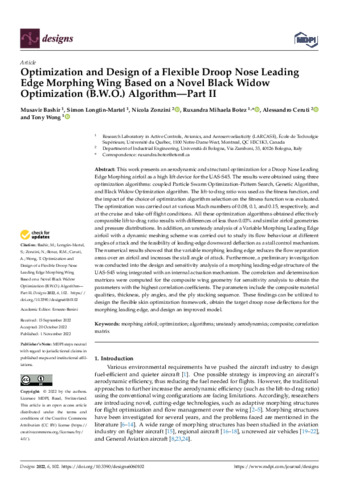

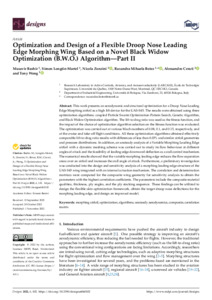

[thumbnail of Botez-R-2022-26119.pdf]
Preview
PDF
Botez-R-2022-26119.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (15MB) | Preview

Abstract

This work presents an aerodynamic and structural optimization for a Droop Nose Leading Edge Morphing airfoil as a high lift device for the UAS-S45. The results were obtained using three optimization algorithms: coupled Particle Swarm Optimization-Pattern Search, Genetic Algorithm, and Black Widow Optimization algorithm. The lift-to-drag ratio was used as the fitness function, and the impact of the choice of optimization algorithm selection on the fitness function was evaluated. The optimization was carried out at various Mach numbers of 0.08, 0.1, and 0.15, respectively, and at the cruise and take-off flight conditions. All these optimization algorithms obtained effectively comparable lift-to-drag ratio results with differences of less than 0.03% and similar airfoil geometries and pressure distributions. In addition, an unsteady analysis of a Variable Morphing Leading Edge airfoil with a dynamic meshing scheme was carried out to study its flow behaviour at different angles of attack and the feasibility of leading-edge downward deflection as a stall control mechanism. The numerical results showed that the variable morphing leading edge reduces the flow separation areas over an airfoil and increases the stall angle of attack. Furthermore, a preliminary investigation was conducted into the design and sensitivity analysis of a morphing leading-edge structure of the UAS-S45 wing integrated with an internal actuation mechanism. The correlation and determination matrices were computed for the composite wing geometry for sensitivity analysis to obtain the parameters with the highest correlation coefficients. The parameters include the composite material qualities, thickness, ply angles, and the ply stacking sequence. These findings can be utilized to design the flexible skin optimization framework, obtain the target droop nose deflections for the morphing leading edge, and design an improved model.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Botez, Ruxandra
Wong, Tony
Affiliation: Génie des systèmes, Génie des systèmes
Date Deposited: 26 Jan 2023 23:50
Last Modified: 03 Feb 2023 15:32
