FRANÇAIS
A showcase of ÉTS researchers’ publications and other contributions
SEARCH

Effect of cooling and annealing conditions on the microstructure, mechanical and superelastic behavior of a rotary forged Ti–18Zr–15Nb (at. %) bar stock for spinal implants

Downloads

Downloads per month over past year

Lukashevich, Konstantin, Sheremetyev, Vadim, Komissarov, Alexander, Cheverikin, Vladimir, Andreev, Vladimir, Prokoshkin, Sergey and Brailovski, Vladimir. 2022. « Effect of cooling and annealing conditions on the microstructure, mechanical and superelastic behavior of a rotary forged Ti–18Zr–15Nb (at. %) bar stock for spinal implants ». Journal of Functional Biomaterials, vol. 13, nº 4.
Compte des citations dans Scopus : 7.

[thumbnail of Brailovski-V-2022-26140.pdf]
Preview
PDF
Brailovski-V-2022-26140.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (10MB) | Preview

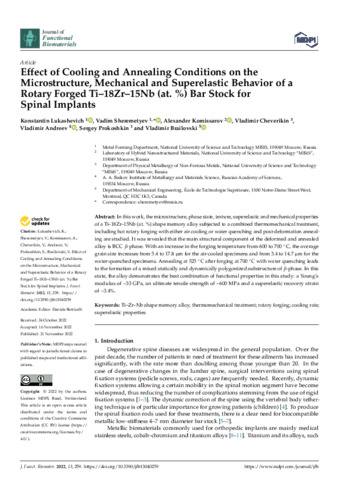

Abstract

In this work, the microstructure, phase state, texture, superelastic and mechanical properties of a Ti–18Zr–15Nb (at. %) shape memory alloy subjected to a combined thermomechanical treatment, including hot rotary forging with either air cooling or water quenching and post-deformation annealing are studied. It was revealed that the main structural component of the deformed and annealed alloy is BCC β-phase. With an increase in the forging temperature from 600 to 700 °C, the average grain size increases from 5.4 to 17.8 µm for the air-cooled specimens and from 3.4 to 14.7 µm for the water-quenched specimens. Annealing at 525 °C after forging at 700 °C with water quenching leads to the formation of a mixed statically and dynamically polygonized substructure of β-phase. In this state, the alloy demonstrates the best combination of functional properties in this study: a Young’s modulus of ~33 GPa, an ultimate tensile strength of ~600 MPa and a superelastic recovery strain of ~3.4%.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Brailovski, Vladimir
Affiliation: Génie mécanique
Date Deposited: 26 Jan 2023 23:48
Last Modified: 03 Feb 2023 15:30
URI: https://espace2.etsmtl.ca/id/eprint/26140

Actions (login required)

View Item View Item
