Optoelectronic pressure sensor based on the bending loss of plastic optical fibers embedded in stretchable polydimethylsiloxane

Downloads

Downloads per month over past year

Alonso Romero, A., Amouzou, K. N., Sengupta, D., Zimmermann, C. A., Richard-Denis, A., Mac-Thiong, J. M., Petit, Y., Lina, J. M. and Ung, B.. 2023. « Optoelectronic pressure sensor based on the bending loss of plastic optical fibers embedded in stretchable polydimethylsiloxane ». Sensors, vol. 23, nº 6.
Compte des citations dans Scopus : 6.

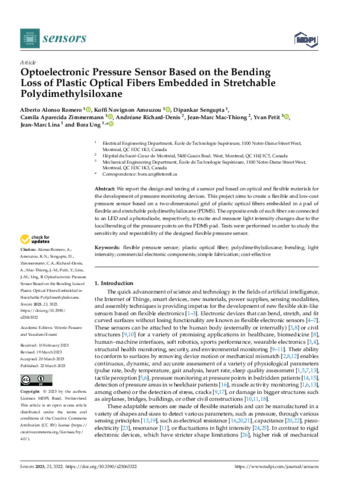

[thumbnail of Petit-Y-2023-26454.pdf]
Preview
PDF
Petit-Y-2023-26454.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (23MB) | Preview

Abstract

We report the design and testing of a sensor pad based on optical and flexible materials for the development of pressure monitoring devices. This project aims to create a flexible and low-cost pressure sensor based on a two-dimensional grid of plastic optical fibers embedded in a pad of flexible and stretchable polydimethylsiloxane (PDMS). The opposite ends of each fiber are connected to an LED and a photodiode, respectively, to excite and measure light intensity changes due to the local bending of the pressure points on the PDMS pad. Tests were performed in order to study the sensitivity and repeatability of the designed flexible pressure sensor

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Petit, Yvan
Lina, Jean-Marc
Ung, Bora
Affiliation: Génie mécanique, Génie électrique, Génie électrique
Date Deposited: 30 May 2023 20:34
Last Modified: 31 May 2023 14:08
URI: https://espace2.etsmtl.ca/id/eprint/26454
