Smoothed particle hydrodynamics approach for simulation of non-newtonian flow of feedstocks used in powder injection molding

Downloads

Downloads per month over past year

Meiabadi, Saleh, Demers, Vincent and Dufresne, Louis. 2023. « Smoothed particle hydrodynamics approach for simulation of non-newtonian flow of feedstocks used in powder injection molding ». Metals, vol. 13, nº 9.

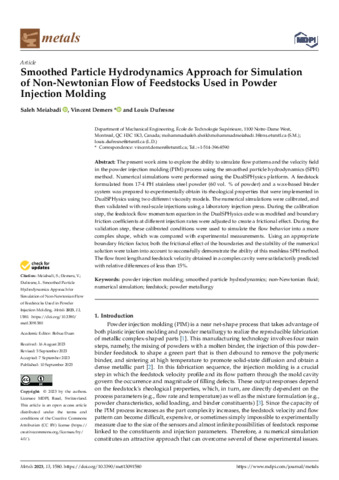

[thumbnail of Demers-V-2023-27928.pdf]
Preview
PDF
Demers-V-2023-27928.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (4MB) | Preview

Abstract

The present work aims to explore the ability to simulate flow patterns and the velocity field in the powder injection molding (PIM) process using the smoothed particle hydrodynamics (SPH) method. Numerical simulations were performed using the DualSPHysics platform. A feedstock formulated from 17-4 PH stainless steel powder (60 vol. % of powder) and a wax-based binder system was prepared to experimentally obtain its rheological properties that were implemented in DualSPHysics using two different viscosity models. The numerical simulations were calibrated, and then validated with real-scale injections using a laboratory injection press. During the calibration step, the feedstock flow momentum equation in the DualSPHysics code was modified and boundary friction coefficients at different injection rates were adjusted to create a frictional effect. During the validation step, these calibrated conditions were used to simulate the flow behavior into a more complex shape, which was compared with experimental measurements. Using an appropriate boundary friction factor, both the frictional effect of the boundaries and the stability of the numerical solution were taken into account to successfully demonstrate the ability of this meshless SPH method. The flow front length and feedstock velocity obtained in a complex cavity were satisfactorily predicted with relative differences of less than 15%.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Demers, Vincent
Dufresne, Louis
Affiliation: Génie mécanique, Génie mécanique
Date Deposited: 16 Oct 2023 17:29
Last Modified: 17 Oct 2023 19:23
URI: https://espace2.etsmtl.ca/id/eprint/27928
