Numerical simulation of the transient flow around the combined morphing leading-edge and trailing-edge airfoil

Bashir, Musavir, Negahban, Mir Hossein, Botez, Ruxandra Mihaela and Wong, Tony. 2024. « Numerical simulation of the transient flow around the combined morphing leading-edge and trailing-edge airfoil ». Biomimetics, vol. 9, nº 2.
Compte des citations dans Scopus : 3.

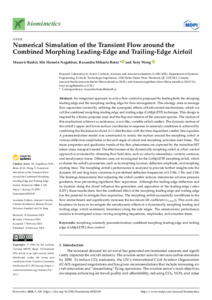

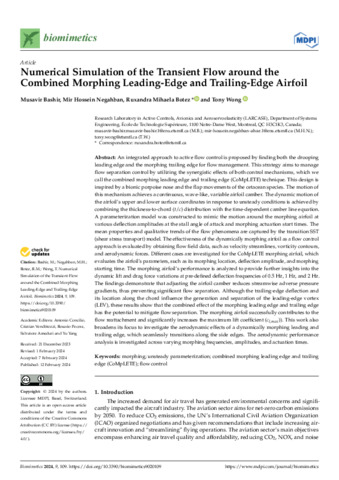

[thumbnail of Botez-R-2024-28421.pdf]
Preview
PDF
Botez-R-2024-28421.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (23MB) | Preview

Abstract

An integrated approach to active flow control is proposed by finding both the drooping leading edge and the morphing trailing edge for flow management. This strategy aims to manage flow separation control by utilizing the synergistic effects of both control mechanisms, which we call the combined morphing leading edge and trailing edge (CoMpLETE) technique. This design is inspired by a bionic porpoise nose and the flap movements of the cetacean species. The motion of this mechanism achieves a continuous, wave-like, variable airfoil camber. The dynamic motion of the airfoil’s upper and lower surface coordinates in response to unsteady conditions is achieved by combining the thickness-to-chord (t/c) distribution with the time-dependent camber line equation. A parameterization model was constructed to mimic the motion around the morphing airfoil at various deflection amplitudes at the stall angle of attack and morphing actuation start times. The mean properties and qualitative trends of the flow phenomena are captured by the transition SST (shear stress transport) model. The effectiveness of the dynamically morphing airfoil as a flow control approach is evaluated by obtaining flow field data, such as velocity streamlines, vorticity contours, and aerodynamic forces. Different cases are investigated for the CoMpLETE morphing airfoil, which evaluates the airfoil’s parameters, such as its morphing location, deflection amplitude, and morphing starting time. The morphing airfoil’s performance is analyzed to provide further insights into the dynamic lift and drag force variations at pre-defined deflection frequencies of 0.5 Hz, 1 Hz, and 2 Hz. The findings demonstrate that adjusting the airfoil camber reduces streamwise adverse pressure gradients, thus preventing significant flow separation. Although the trailing-edge deflection and its location along the chord influence the generation and separation of the leading-edge vortex (LEV), these results show that the combined effect of the morphing leading edge and trailing edge has the potential to mitigate flow separation. The morphing airfoil successfully contributes to the flow reattachment and significantly increases the maximum lift coefficient (cl,max)). This work also broadens its focus to investigate the aerodynamic effects of a dynamically morphing leading and trailing edge, which seamlessly transitions along the side edges. The aerodynamic performance analysis is investigated across varying morphing frequencies, amplitudes, and actuation times.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Botez, Ruxandra
Wong, Tony
Affiliation: Génie des systèmes, Génie des systèmes
Date Deposited: 12 Mar 2024 19:04
Last Modified: 15 Mar 2024 18:38
URI: https://espace2.etsmtl.ca/id/eprint/28421
