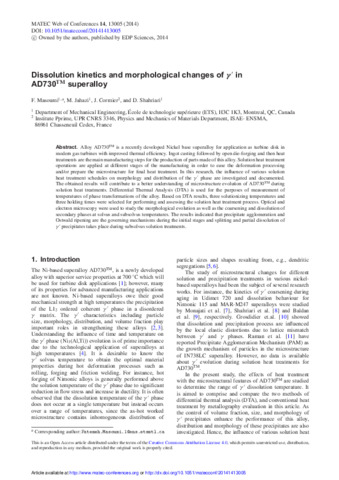

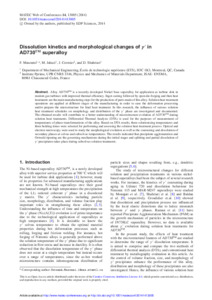

Dissolution kinetics and morphological changes of γ′ in AD730TM superalloy

Masoumi, Fatemeh, Jahazi, Mohammad, Cormier, J. et Shahriari, D.. 2014. « Dissolution kinetics and morphological changes of γ′ in AD730TM superalloy ». In 2nd European Symposium on Superalloys and Their Applications, EUROSUPERALLOYS 2014 (Giens, France, May 12-16, 2014) Coll. « MATEC Web of Conferences », vol. 14.
Compte des citations dans Scopus : 11.

Preview

PDF Jahazi M 2014 8735.pdf - Published Version Use licence: Creative Commons CC BY. Download (780kB) | Preview

Abstract

Alloy AD730TM is a recently developed Nickel base superalloy for application as turbine disk in modern gas turbines with improved thermal efficiency. Ingot casting followed by open die-forging and then heat treatments are the main manufacturing steps for the production of parts made of this alloy. Solution heat treatment operations are applied at different stages of the manufacturing in order to ease the deformation processing and/or prepare the microstructure for final heat treatment. In this research, the influence of various solution heat treatment schedules on morphology and distribution of the γ′ phase are investigated and documented. The obtained results will contribute to a better understanding of microstructure evolution of AD730TM during solution heat treatments. Differential Thermal Analysis (DTA) is used for the purposes of measurement of temperatures of phase transformations of the alloy. Based on DTA results, three solutionizing temperatures and three holding times were selected for performing and assessing the solution heat treatment process. Optical and electron microscopy were used to study the morphological evolution as well as the coarsening and dissolution of secondary phases at solvus and subsolvus temperatures. The results indicated that precipitate agglomeration and Ostwald ripening are the governing mechanisms during the initial stages and splitting and partial dissolution of γ′ precipitates takes place during subsolvus solution treatments.

Item Type:	Conference proceeding
ISBN:	2261236X
Additional Information:	Identifiant de l'article: 13005
Professor:	Professor Jahazi, Mohammad
Affiliation:	Génie mécanique
Date Deposited:	10 Oct 2014 15:18
Last Modified:	13 Apr 2023 16:08
URI:	https://espace2.etsmtl.ca/id/eprint/8735

Actions (login required)

View Item
