Thermal dynamics effects using pulse-shaping laser sintering of printed silver inks

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Bolduc, M., Trudeau, C., Beaupré, P., Cloutier, S. G. et Galarneau, P.. 2018. « Thermal dynamics effects using pulse-shaping laser sintering of printed silver inks ». Scientific Reports, vol. 8, nº 1. p. 1418.
Compte des citations dans Scopus : 25.

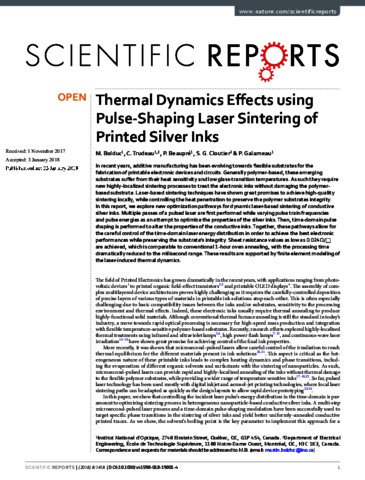

[thumbnail of Cloutier S 2018 16331 Thermal Dynamics Effects using Pulse-Shaping.pdf]
Prévisualisation
PDF
Cloutier S 2018 16331 Thermal Dynamics Effects using Pulse-Shaping.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY.

Télécharger (1MB) | Prévisualisation

Résumé

In recent years, additive manufacturing has been evolving towards flexible substrates for the fabrication of printable electronic devices and circuits. Generally polymer-based, these emerging substrates suffer from their heat sensitivity and low glass-transition temperatures. As such they require new highly-localized sintering processes to treat the electronic inks without damaging the polymer-based substrate. Laser-based sintering techniques have shown great promises to achieve high-quality sintering locally, while controlling the heat penetration to preserve the polymer substrates integrity. In this report, we explore new optimization pathways for dynamic laser-based sintering of conductive silver inks. Multiple passes of a pulsed laser are first performed while varying pulse train frequencies and pulse energies as an attempt to optimize the properties of the silver inks. Then, time-domain pulse shaping is performed to alter the properties of the conductive inks. Together, these pathways allow for the careful control of the time-domain laser energy distribution in order to achieve the best electronic performances while preserving the substrate’s integrity. Sheet resistance values as low as 0.024Ω/□ are achieved, which is comparable to conventional 1-hour oven annealing, with the processing time dramatically reduced to the milisecond range. These results are supported by finite element modeling of the laser-induced thermal dynamics.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Cloutier, Sylvain G.
Affiliation: Génie électrique
Date de dépôt: 12 févr. 2018 17:14
Dernière modification: 22 janv. 2020 19:45
URI: https://espace2.etsmtl.ca/id/eprint/16331
