Wide linear range voltage-controlled delay unit for time-mode signal processing

Downloads

Downloads per month over past year

Ziabakhsh, Soheyl, Gagnon, Ghyslain et Roberts, Gordon W.. 2015. « Wide linear range voltage-controlled delay unit for time-mode signal processing ». In 2015 IEEE International Symposium on Circuits and Systems (ISCAS) (Lisbon, Portugal, May 24-27, 2015) pp. 1826-1829. Piscataway, NJ, USA : IEEE.
Compte des citations dans Scopus : 3.

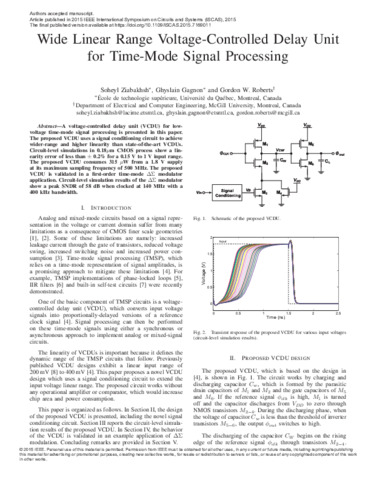

[thumbnail of Gagnon-G-2015-11643-1.pdf]
Preview
PDF
Gagnon-G-2015-11643-1.pdf - Accepted Version
Use licence: All rights reserved to copyright holder.

Download (937kB) | Preview

Abstract

A voltage-controlled delay unit (VCDU) for low-voltage time-mode signal processing is presented in this paper. The proposed VCDU uses a signal conditioning circuit to achieve wider-range and higher linearity than state-of-the-art VCDUs. Circuit-level simulations in 0.18μm CMOS process show a linearity error of less than ± 0.2% for a 0.15 V to 1 V input range. The proposed VCDU consumes 315 μW from a 1.8 V supply at its maximum sampling frequency of 500 MHz. The proposed VCDU is validated in a first-order time-mode ΔΣ modulator application. Circuit-level simulation results of the ΔΣ modulator show a peak SNDR of 58 dB when clocked at 140 MHz with a 400 kHz bandwidth.

Item Type: Conference proceeding
Professor:
Professor
Gagnon, Ghyslain
Affiliation: Génie électrique
Date Deposited: 20 Oct 2015 18:10
Last Modified: 06 Dec 2022 19:45
URI: https://espace2.etsmtl.ca/id/eprint/11643
