Users oriented selection labelling for energy absorbers in fall protection

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Arteau, Jean. 2013. « Users oriented selection labelling for energy absorbers in fall protection ». In Frühjahrskongress 2013 der Gesellschaft für Arbeitswissenschaft GfA (Krefeld, Germany, Feb. 27-Mar. 1, 2013) pp. 325-328. Dortmund : GfA-Press.

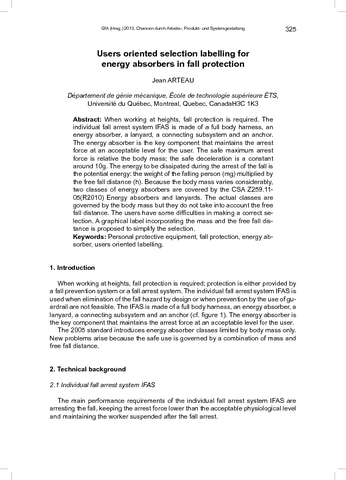

[thumbnail of Arteau J. 2013 12767 Users oriented selection labelling.pdf]
Prévisualisation
PDF
Arteau J. 2013 12767 Users oriented selection labelling.pdf - Version publiée
Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur.

Télécharger (1MB) | Prévisualisation

Résumé

When working at heights, fall protection is required. The individual fall arrest system IFAS is made of a full body harness, an energy absorber, a lanyard, a connecting subsystem and an anchor. The energy absorber is the key component that maintains the arrest force at an acceptable level for the user. The safe maximum arrest force is relative the body mass; the safe deceleration is a constant around 10g. The energy to be dissipated during the arrest of the fall is the potential energy: the weight of the falling person (mg) multiplied by the free fall distance (h). Because the body mass varies considerably, two classes of energy absorbers are covered by the CSA Z259.11- 05(R2010) Energy absorbers and lanyards. The actual classes are governed by the body mass but they do not take into account the free fall distance. The users have some difficulties in making a correct selection. A graphical label incorporating the mass and the free fall distance is proposed to simplify the selection.

Type de document: Compte rendu de conférence
Professeur:
Professeur
Arteau, Jean
Affiliation: Génie mécanique
Date de dépôt: 10 juin 2016 16:29
Dernière modification: 20 avr. 2017 13:19
URI: https://espace2.etsmtl.ca/id/eprint/12767
