A novel comb architecture for enhancing the sensitivity of bulk mode gyroscopes

Downloads

Downloads per month over past year

Elsayed, Mohannad Y., Nabki, Frederic et El-Gamal, Mourad N.. 2013. « A novel comb architecture for enhancing the sensitivity of bulk mode gyroscopes ». Sensors, vol. 13, nº 12. pp. 16641-16656.
Compte des citations dans Scopus : 9.

[img]

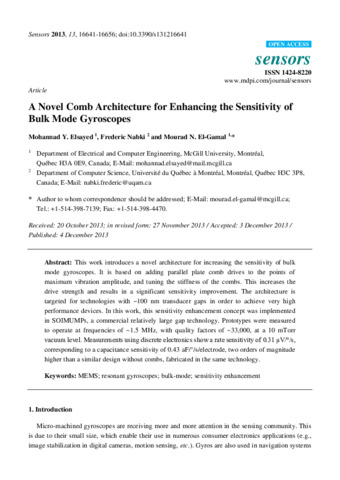

Preview
PDF
Nabki F 2013 13197.pdf - Published Version
Use licence: Creative Commons CC BY-NC-SA.

Download (1MB) | Preview

Abstract

This work introduces a novel architecture for increasing the sensitivity of bulk mode gyroscopes. It is based on adding parallel plate comb drives to the points of maximum vibration amplitude, and tuning the stiffness of the combs. This increases the drive strength and results in a significant sensitivity improvement. The architecture is targeted for technologies with ~100 nm transducer gaps in order to achieve very high performance devices. In this work, this sensitivity enhancement concept was implemented in SOIMUMPs, a commercial relatively large gap technology. Prototypes were measured to operate at frequencies of ~1.5 MHz, with quality factors of ~33,000, at a 10 mTorr vacuum level. Measurements using discrete electronics show a rate sensitivity of 0.31 μV/°/s, corresponding to a capacitance sensitivity of 0.43 aF/°/s/electrode, two orders of magnitude higher than a similar design without combs, fabricated in the same technology.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Nabki, Frédéric
Affiliation: Autres
Date Deposited: 13 Jul 2016 17:42
Last Modified: 16 Oct 2020 18:47
URI: https://espace2.etsmtl.ca/id/eprint/13197
