Azizi, Sohrab, David, Éric, Fréchette, Michel F., Nguyen-Tri, Phuong et Ouellet-Plamondon, Claudiane M..
2018.
« Electrical and thermal conductivity of ethylene vinyl acetate composite with graphene and carbon black filler ».
Polymer Testing, vol. 72.
pp. 24-31.
Compte des citations dans Scopus : 56.
Prévisualisation |
PDF
Ouellet-Plamondon C 2018 17475.pdf - Version acceptée Licence d'utilisation : Creative Commons CC BY-NC-ND. Télécharger (330kB) | Prévisualisation |
Résumé

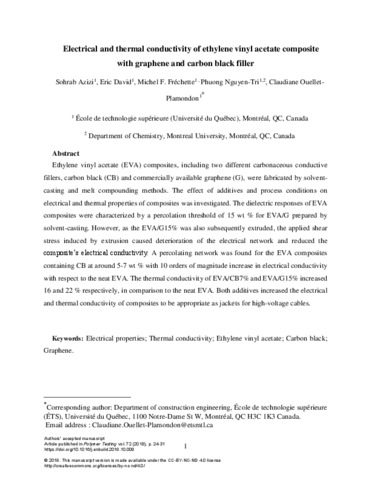

Ethylene vinyl acetate (EVA) composites, including two different carbonaceous conductive fillers, carbon black (CB) and commercially available graphene (G), were fabricated by solvent-casting and melt compounding methods. The effect of additives and process conditions on electrical and thermal properties of composites was investigated. The dielectric responses of EVA composites were characterized by a percolation threshold of 15 wt % for EVA/G prepared by solvent-casting. However, as the EVA/G15% was also subsequently extruded, the applied shear stress induced by extrusion caused deterioration of the electrical network and reduced the composite's electrical conductivity. A percolating network was found for the EVA composites containing CB at around 5–7 wt % with 10 orders of magnitude increase in electrical conductivity with respect to the neat EVA. The thermal conductivity of EVA/CB7% and EVA/G15% increased 16 and 22% respectively, in comparison to the neat EVA. Both additives increased the electrical and thermal conductivity of composites to be appropriate as jackets for high-voltage cables.
Type de document: | Article publié dans une revue, révisé par les pairs |
---|---|
Professeur: | Professeur David, Éric Nguyen-Tri, Phuong Ouellet-Plamondon, Claudiane |
Affiliation: | Génie mécanique, Autres, Génie de la construction |
Date de dépôt: | 31 oct. 2018 14:13 |
Dernière modification: | 29 sept. 2020 04:00 |
URI: | https://espace2.etsmtl.ca/id/eprint/17475 |
Actions (Authentification requise)
Dernière vérification avant le dépôt |
