On the wind turbine blade loads from an aeroelastic simulation and their transfer to a three-dimensional finite element model of the blade

Forcier, Louis-Charles et Joncas, Simon. 2020. « On the wind turbine blade loads from an aeroelastic simulation and their transfer to a three-dimensional finite element model of the blade ». Wind Engineering, vol. 44, nº 6. pp. 577-595.
Compte des citations dans Scopus : 5.

Prévisualisation

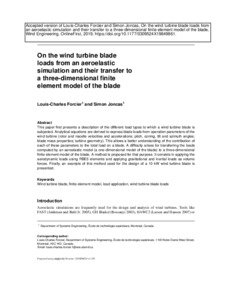

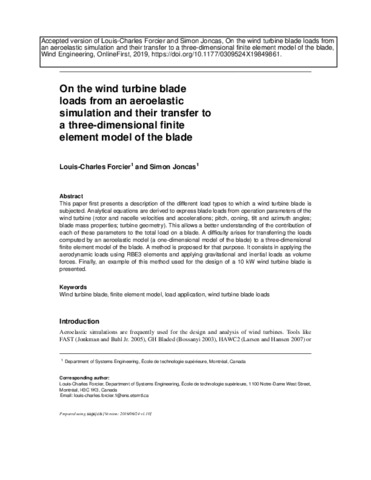

PDF Joncas S 2019 19085.pdf - Version acceptée Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur. Télécharger (337kB) | Prévisualisation

Résumé

This article first presents a description of the different load types to which a wind turbine blade is subjected. Analytical equations are derived to express blade loads from operation parameters of the wind turbine (rotor and nacelle velocities and accelerations; pitch, coning, tilt, and azimuth angles; blade mass properties; turbine geometry). This allows a better understanding of the contribution of each of these parameters to the total load on a blade. A difficulty arises for transferring the loads computed by an aeroelastic model (a one-dimensional model of the blade) to a three-dimensional finite element model of the blade. A method is proposed for that purpose. It consists in applying the aerodynamic loads using RBE3 elements and applying gravitational and inertial loads as volume forces. Finally, an example of this method used for the design of a 10 kW wind turbine blade is presented.

Type de document:	Article publié dans une revue, révisé par les pairs
Professeur:	Professeur Joncas, Simon
Affiliation:	Génie des systèmes
Date de dépôt:	08 août 2019 14:00
Dernière modification:	10 sept. 2020 13:59
URI:	https://espace2.etsmtl.ca/id/eprint/19085
