Avionics graphics hardware performance prediction with machine learning

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Girard, Simon R., Legault, Vincent, Bois, Guy et Boland, Jean-François. 2019. « Avionics graphics hardware performance prediction with machine learning ». Scientific Programming, vol. 2019.
Compte des citations dans Scopus : 4.

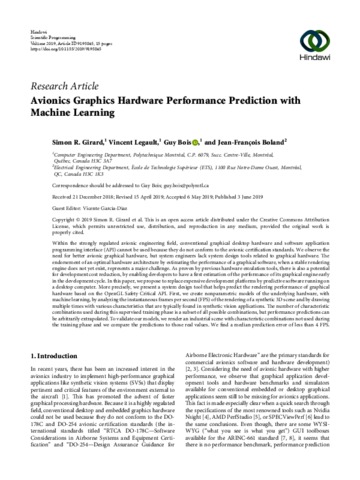

[thumbnail of Boland JF 2019 19243.pdf]
Prévisualisation
PDF
Boland JF 2019 19243.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY.

Télécharger (4MB) | Prévisualisation

Résumé

Within the strongly regulated avionic engineering field, conventional graphical desktop hardware and software application programming interface (API) cannot be used because they do not conform to the avionic certification standards. We observe the need for better avionic graphical hardware, but system engineers lack system design tools related to graphical hardware. The endorsement of an optimal hardware architecture by estimating the performance of a graphical software, when a stable rendering engine does not yet exist, represents a major challenge. As proven by previous hardware emulation tools, there is also a potential for development cost reduction, by enabling developers to have a first estimation of the performance of its graphical engine early in the development cycle. In this paper, we propose to replace expensive development platforms by predictive software running on a desktop computer. More precisely, we present a system design tool that helps predict the rendering performance of graphical hardware based on the OpenGL Safety Critical API. First, we create nonparametric models of the underlying hardware, with machine learning, by analyzing the instantaneous frames per second (FPS) of the rendering of a synthetic 3D scene and by drawing multiple times with various characteristics that are typically found in synthetic vision applications. The number of characteristic combinations used during this supervised training phase is a subset of all possible combinations, but performance predictions can be arbitrarily extrapolated. To validate our models, we render an industrial scene with characteristic combinations not used during the training phase and we compare the predictions to those real values. We find a median prediction error of less than 4 FPS.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Boland, Jean-François
Affiliation: Génie électrique
Date de dépôt: 12 août 2019 15:12
Dernière modification: 05 sept. 2023 13:56
URI: https://espace2.etsmtl.ca/id/eprint/19243
